NL27WZ14MU3TCG

NL27WZ14MU3TCG

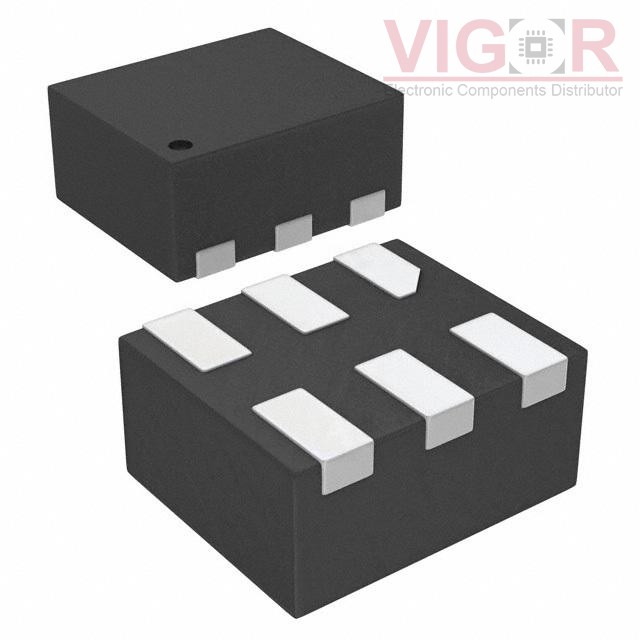

Image is for reference,
please contact us to get the real picture

Part No :

NL27WZ14MU3TCG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC INVERT SCHMITT 2CH 2-IN 6UDFN
Catalog
Logic - Gates and Inverters
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
NL27WZ14MU3TCG PDF
Availability
570 pieces
Unit Price
$0.11753

Current price of NL27WZ14MU3TCG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NL27WZ14MU3TCG Specifications
Type Description
Series:27WZ
Package:Tape & Reel (TR)
Part Status:Active
Logic Type:Inverter
Number of Circuits:2
Number of Inputs:2
Features:Schmitt Trigger
Voltage - Supply:1.65V ~ 5.5V
Current - Quiescent (Max):1 µA
Current - Output High, Low:32mA, 32mA
Logic Level - Low:0.5V ~ 1.9V
Logic Level - High:1.4V ~ 3.6V
Max Propagation Delay @ V, Max CL:4.9ns @ 5V, 50pF
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Supplier Device Package:6-UDFN (1x1)
Package / Case:6-UFDFN
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
