SN74ALS86NG4

SN74ALS86NG4

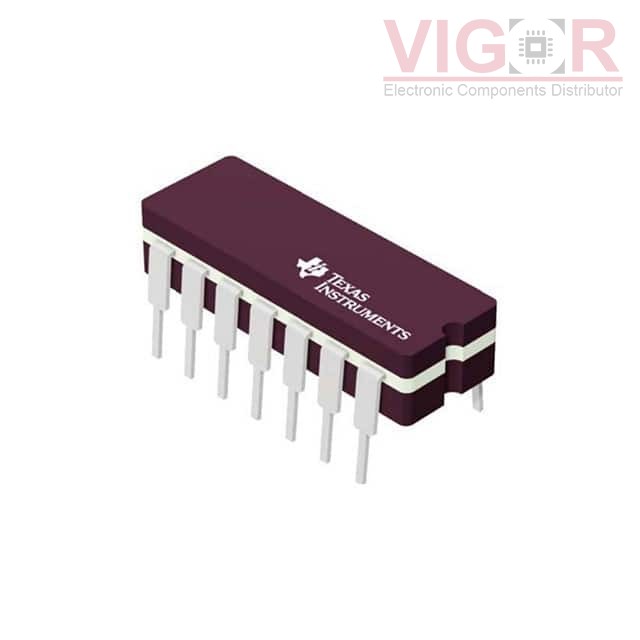

Image is for reference,
please contact us to get the real picture

Part No :

SN74ALS86NG4

Manufacturer
Texas Instruments
Description
IC GATE XOR 4CH 2-INP 14DIP
Catalog
Logic - Gates and Inverters
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
SN74ALS86NG4 PDF
Availability
2269 pieces
Unit Price
$0.27475

Current price of SN74ALS86NG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74ALS86NG4 Specifications
Type Description
Series:74ALS
Package:Tube
Part Status:Active
Logic Type:XOR (Exclusive OR)
Number of Circuits:4
Number of Inputs:2
Features:-
Voltage - Supply:4.5V ~ 5.5V
Current - Quiescent (Max):-
Current - Output High, Low:400µA, 8mA
Logic Level - Low:0.8V
Logic Level - High:2V
Max Propagation Delay @ V, Max CL:17ns @ 5V, 50pF
Operating Temperature:0°C ~ 70°C
Mounting Type:Through Hole
Supplier Device Package:14-PDIP
Package / Case:14-DIP (0.300", 7.62mm)
