SN74LVC1G02DSFR

SN74LVC1G02DSFR

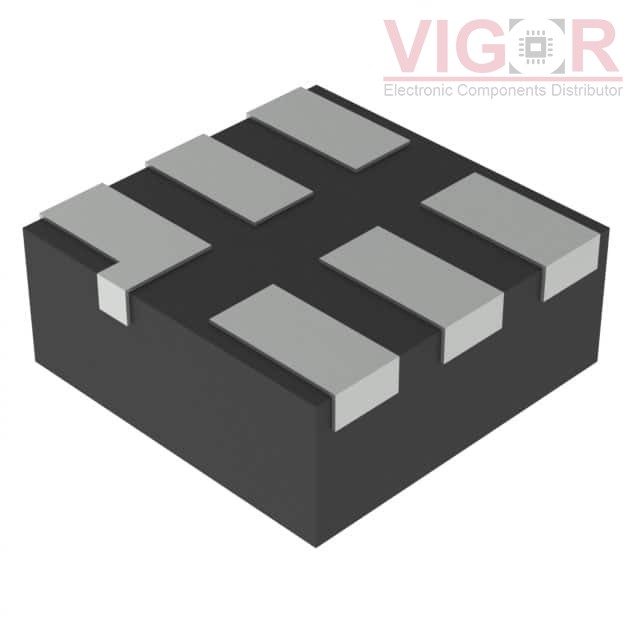

Image is for reference,
please contact us to get the real picture

Part No :

SN74LVC1G02DSFR

Manufacturer
Texas Instruments
Description
IC GATE NOR 1CH 2-INP 6SON
Catalog
Logic - Gates and Inverters
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
SN74LVC1G02DSFR PDF
Availability
3341 pieces
Unit Price
$0.35000

Current price of SN74LVC1G02DSFR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74LVC1G02DSFR Specifications
Type Description
Series:74LVC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Logic Type:NOR Gate
Number of Circuits:1
Number of Inputs:2
Features:-
Voltage - Supply:1.65V ~ 5.5V
Current - Quiescent (Max):10 µA
Current - Output High, Low:32mA, 32mA
Logic Level - Low:0.7V ~ 0.8V
Logic Level - High:1.7V ~ 2V
Max Propagation Delay @ V, Max CL:4.5ns @ 5V, 50pF
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Supplier Device Package:6-SON (1x1)
Package / Case:6-XFDFN
