NCP1336BDR2G

NCP1336BDR2G

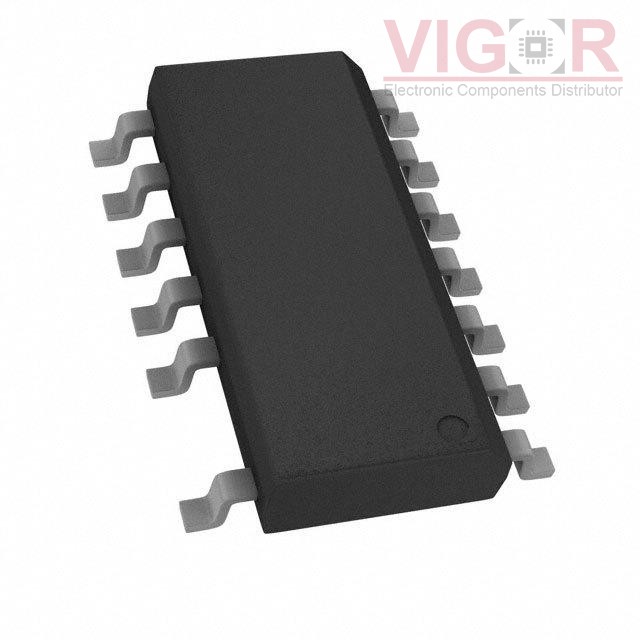

Image is for reference,
please contact us to get the real picture

Part No :

NCP1336BDR2G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC REG CTRLR FLYBK ISO PWM
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
NCP1336BDR2G PDF
Availability
176 pieces
Unit Price
$1.26000

Current price of NCP1336BDR2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCP1336BDR2G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Isolation:Isolated
Internal Switch(s):No
Voltage - Breakdown:-
Topology:Flyback
Voltage - Start Up:15 V
Voltage - Supply (Vcc/Vdd):9V ~ 28V
Duty Cycle:-
Frequency - Switching:-
Power (Watts):-
Fault Protection:Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features:-
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:14-SOIC (0.154", 3.90mm Width), 13 Leads
Supplier Device Package:14-SOIC
Mounting Type:Surface Mount
