BM2P109TF-E2

BM2P109TF-E2

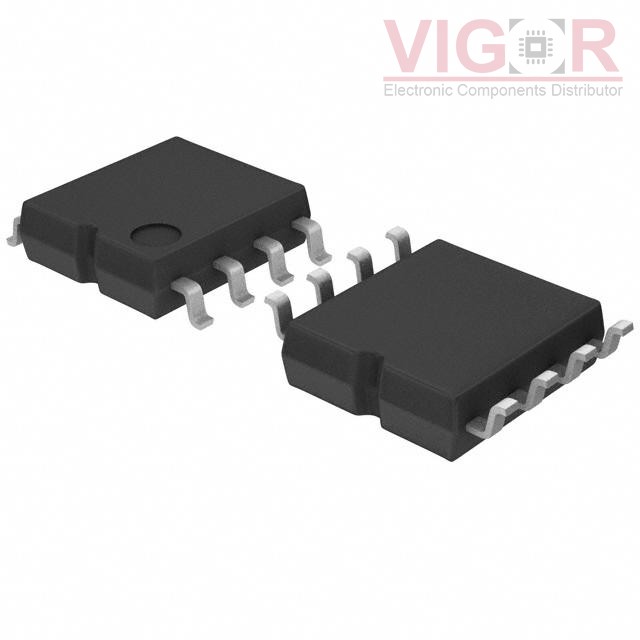

Image is for reference,
please contact us to get the real picture

Part No :

BM2P109TF-E2

Manufacturer
ROHM Semiconductor
Description
PWM TYPE DC/DC CONVERTER
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
BM2P109TF-E2 PDF
Availability
2493 pieces
Unit Price
$1.92000

Current price of BM2P109TF-E2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BM2P109TF-E2 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Isolation:Non-Isolated
Internal Switch(s):Yes
Voltage - Breakdown:650V
Topology:Full-Bridge
Voltage - Start Up:-
Voltage - Supply (Vcc/Vdd):8V ~ 10.81V
Duty Cycle:75%
Frequency - Switching:100kHz
Power (Watts):-
Fault Protection:Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features:EN, Soft Start
Operating Temperature:-40°C ~ 105°C
Package / Case:8-SOIC (0.173", 4.40mm Width)
Supplier Device Package:8-SOP
Mounting Type:Surface Mount
