NCP13992AHDR2G

NCP13992AHDR2G

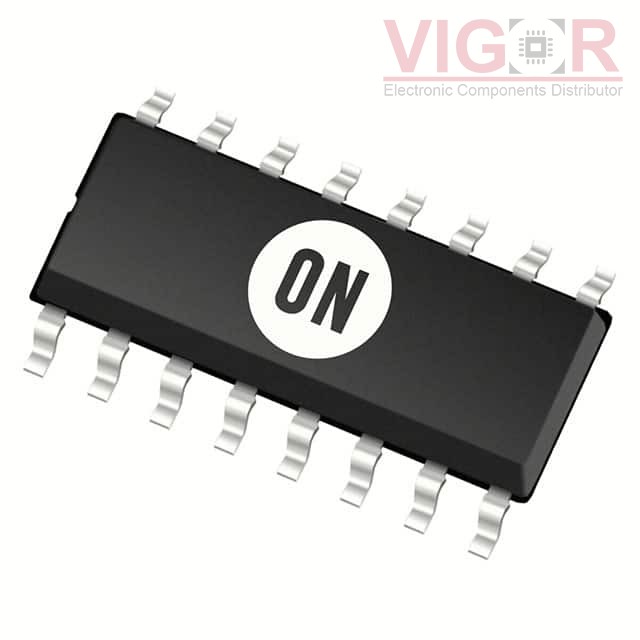

Image is for reference,
please contact us to get the real picture

Part No :

NCP13992AHDR2G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC CTLR HALF BRIDGE RES 16SOIC
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
NCP13992AHDR2G PDF
Availability
250 pieces
Unit Price
$0.78000

Current price of NCP13992AHDR2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCP13992AHDR2G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Output Isolation:Isolated
Internal Switch(s):No
Voltage - Breakdown:-
Topology:Half-Bridge
Voltage - Start Up:9 V
Voltage - Supply (Vcc/Vdd):9.5V ~ 20V
Duty Cycle:50%
Frequency - Switching:20kHz ~ 750kHz
Power (Watts):-
Fault Protection:Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features:EN, Frequency Control, Soft Start, Sync
Operating Temperature:-50°C ~ 150°C (TJ)
Package / Case:16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package:16-SOIC
Mounting Type:Surface Mount
