LNK6776K-TL

LNK6776K-TL

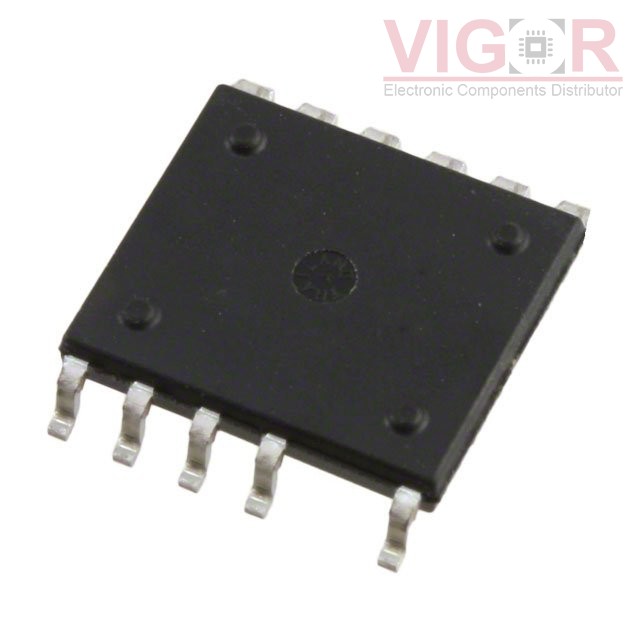

Image is for reference,
please contact us to get the real picture

Part No :

LNK6776K-TL

Manufacturer
Power Integrations
Description
IC OFFLINE SW PSR 12ESOP
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
LNK6776K-TL PDF
Availability
20860 pieces
Unit Price
$1.14000

Current price of LNK6776K-TL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LNK6776K-TL Specifications
Type Description
Series:LinkSwitch™-HP
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:725V
Topology:Flyback
Voltage - Start Up:-
Voltage - Supply (Vcc/Vdd):-
Duty Cycle:64%
Frequency - Switching:120kHz ~ 136kHz
Power (Watts):48 W
Fault Protection:Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features:-
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
Supplier Device Package:12-ESOP
Mounting Type:Surface Mount
