ICE5AR0680BZSXKLA1

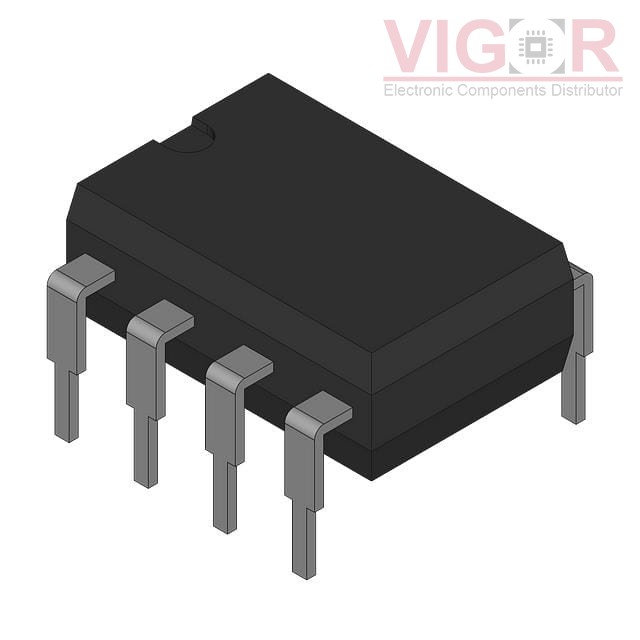

Image is for reference,
please contact us to get the real picture

Part No :: ICE5AR0680BZSXKLA1

Manufacturer: IR (Infineon Technologies)

Description: IC OFFLINE 800V FLYBACK 7DIP

Catalog: PMIC - AC DC Converters, Offline Switchers

Shipped from: HK warehouse

Expected Shipping Date: Aug 22 - Aug 26 2025

DataSheet: ICE5AR0680BZSXKLA1 PDF

Availability: 713 pieces

Unit Price: ~~$2.47000~~

Current price of ICE5AR0680BZSXKLA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ICE5AR0680BZSXKLA1 Specifications

Type	Description
Series:	CoolMOS™, CoolSET™
Package:	Tube
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	800V
Topology:	Flyback
Voltage - Start Up:	16 V
Voltage - Supply (Vcc/Vdd):	10V ~ 25.5V
Duty Cycle:	75%
Frequency - Switching:	100kHz
Power (Watts):	39 W
Fault Protection:	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Control Features:	EN, Soft Start, Sync
Operating Temperature:	-40°C ~ 125°C (TJ)
Package / Case:	8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package:	PG-DIP-7
Mounting Type:	Through Hole

Please confirm the specifications of the products when ordering.
