VIPER26HDTR

VIPER26HDTR

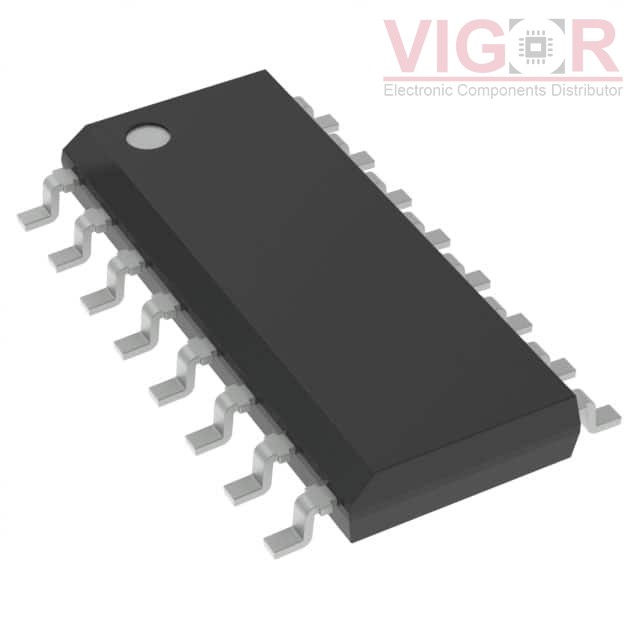

Image is for reference,
please contact us to get the real picture

Part No :

VIPER26HDTR

Manufacturer
STMicroelectronics
Description
IC OFFLINE CONV PWM 800V 16-SOIC
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
VIPER26HDTR PDF
Availability
7512 pieces
Unit Price
$1.10000

Current price of VIPER26HDTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VIPER26HDTR Specifications
Type Description
Series:VIPer™ plus
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Isolation:Either
Internal Switch(s):Yes
Voltage - Breakdown:800V
Topology:Flyback
Voltage - Start Up:13 V
Voltage - Supply (Vcc/Vdd):11.5V ~ 23.5V
Duty Cycle:70%
Frequency - Switching:115kHz
Power (Watts):20 W
Fault Protection:Current Limiting, Over Temperature
Control Features:-
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:16-SO
Mounting Type:Surface Mount
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
