LNK6765K

LNK6765K

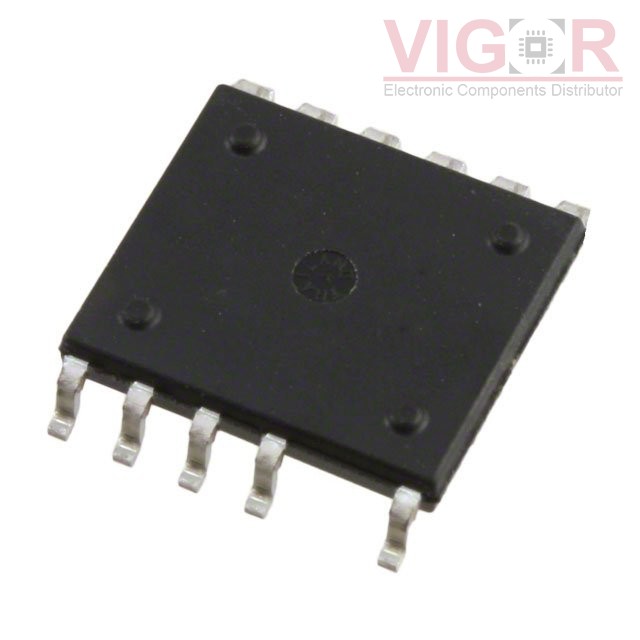

Image is for reference,
please contact us to get the real picture

Part No :

LNK6765K

Manufacturer
Power Integrations
Description
IC OFFLINE SW PSR 12ESOP
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
LNK6765K PDF
Availability
6000 pieces
Unit Price
$0.00000

Current price of LNK6765K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LNK6765K Specifications
Type Description
Series:LinkSwitch™-HP
Package:Tube
Part Status:Discontinued at Digi-Key
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:650V
Topology:Flyback
Voltage - Start Up:-
Voltage - Supply (Vcc/Vdd):-
Duty Cycle:64%
Frequency - Switching:120kHz ~ 136kHz
Power (Watts):42 W
Fault Protection:Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features:-
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
Supplier Device Package:12-ESOP
Mounting Type:Surface Mount
