NCP1568B13ADBR2G

NCP1568B13ADBR2G

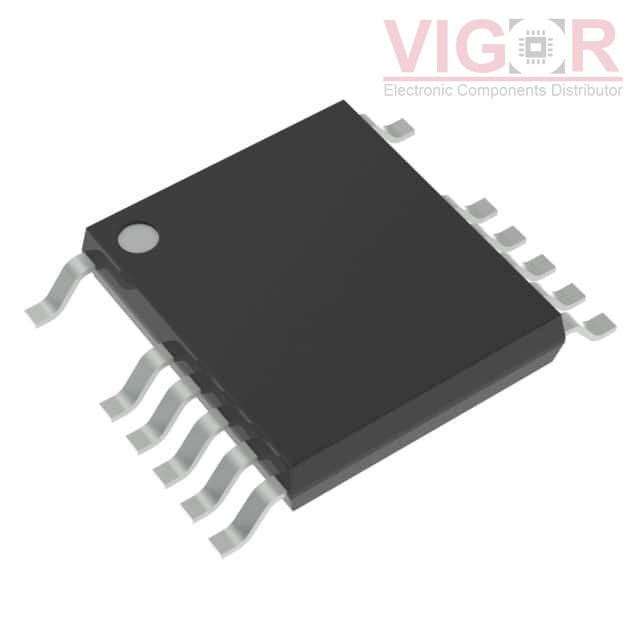

Image is for reference,
please contact us to get the real picture

Part No :

NCP1568B13ADBR2G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
ACTIVE CLAMP FLYBACK
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
NCP1568B13ADBR2G PDF
Availability
900 pieces
Unit Price
$0.00000

Current price of NCP1568B13ADBR2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCP1568B13ADBR2G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:-
Topology:Flyback
Voltage - Start Up:15.2 V
Voltage - Supply (Vcc/Vdd):10V ~ 27V
Duty Cycle:79%
Frequency - Switching:100kHz ~ 1MHz
Power (Watts):-
Fault Protection:Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit
Control Features:Frequency Control, Soft Start
Operating Temperature:-40°C ~ 125°C (TJ)
Package / Case:16-TSSOP (0.173", 4.40mm Width), 12 Leads
Supplier Device Package:16-TSSOP
Mounting Type:Surface Mount
