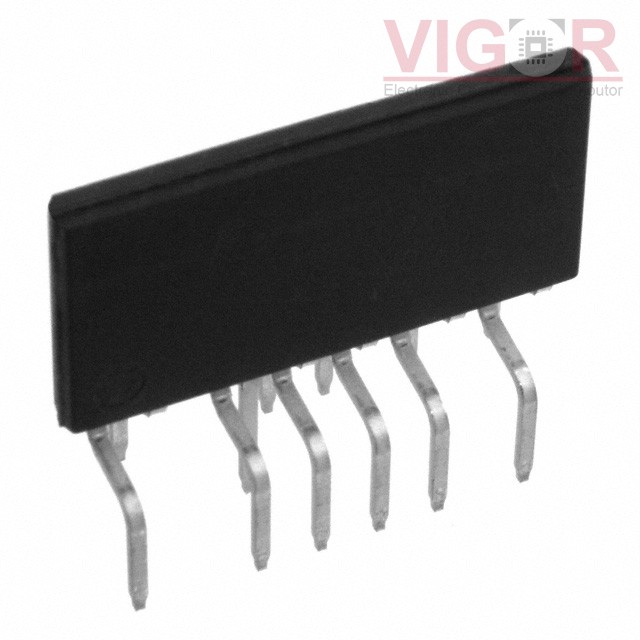

TFS764HG

TFS764HG

Image is for reference,
please contact us to get the real picture

Part No :

TFS764HG

Manufacturer
Power Integrations
Description
IC PWR SUPPLY CTLR 414W ESIP-16
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
TFS764HG PDF
Availability
1248 pieces
Unit Price
$0.00000

Current price of TFS764HG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TFS764HG Specifications
Type Description
Series:HiperTFS®
Package:Tube
Part Status:Obsolete
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:530V, 725V
Topology:Flyback, Forward
Voltage - Start Up:12.1 V
Voltage - Supply (Vcc/Vdd):11.1V ~ 13.4V
Duty Cycle:70%
Frequency - Switching:66kHz
Power (Watts):414 W
Fault Protection:Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features:EN
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Supplier Device Package:16-eSIPB
Mounting Type:Through Hole
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

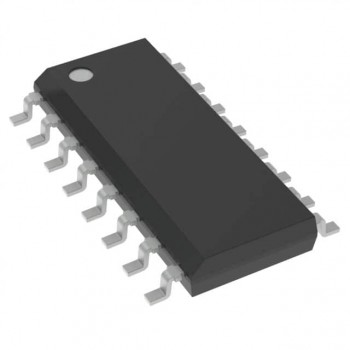

HOT E-L6598D013TR

E-L6598D013TR

IC CTRLR HV 16SOIC

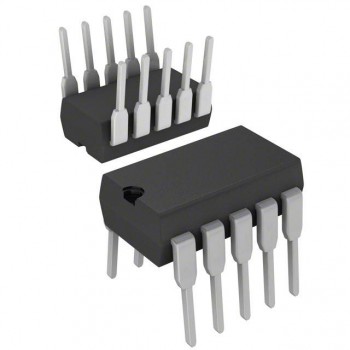

HOT VIPER28HE

VIPER28HE

IC OFFLINE CONV PWM 800V 10-SDIP

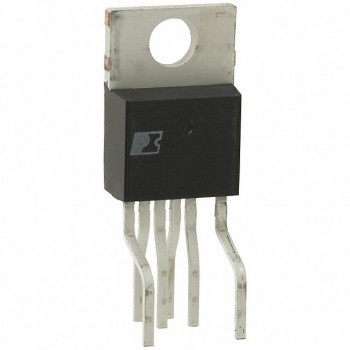

HOT TOP249Y
