TFS761HG

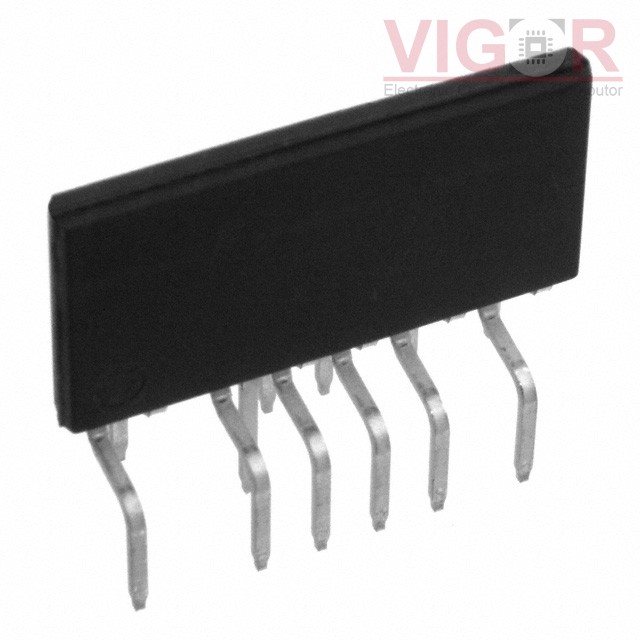

Image is for reference,
please contact us to get the real picture

Part No :: TFS761HG

Manufacturer: Power Integrations

Description: IC PWR SUPPLY CTLR 326W ESIP-16

Catalog: PMIC - AC DC Converters, Offline Switchers

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: TFS761HG PDF

Availability: 10042 pieces

Unit Price: ~~$0.00000~~

Current price of TFS761HG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TFS761HG Specifications

Type	Description
Series:	HiperTFS®
Package:	Tube
Part Status:	Obsolete
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	530V, 725V
Topology:	Flyback, Forward
Voltage - Start Up:	12.1 V
Voltage - Supply (Vcc/Vdd):	11.1V ~ 13.4V
Duty Cycle:	70%
Frequency - Switching:	66kHz
Power (Watts):	326 W
Fault Protection:	Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features:	EN
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Supplier Device Package:	16-eSIPB
Mounting Type:	Through Hole
