UC3865QG3

UC3865QG3

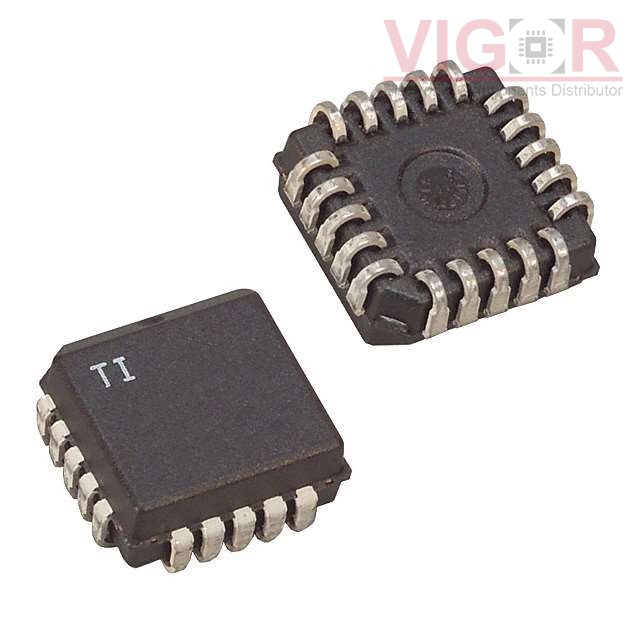

Image is for reference,
please contact us to get the real picture

Part No :

UC3865QG3

Manufacturer
Texas Instruments
Description
IC REG CTRLR PWM VM 20-PLCC
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
UC3865QG3 PDF
Availability
2225 pieces
Unit Price
$0.00000

Current price of UC3865QG3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UC3865QG3 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Isolation:Non-Isolated
Internal Switch(s):Yes
Voltage - Breakdown:-
Topology:Full-Bridge, Half-Bridge, Push-Pull
Voltage - Start Up:16.5 V
Voltage - Supply (Vcc/Vdd):10.5V ~ 22V
Duty Cycle:-
Frequency - Switching:10kHz ~ 1MHz
Power (Watts):-
Fault Protection:-
Control Features:Soft Start
Operating Temperature:0°C ~ 70°C (TA)
Package / Case:20-LCC (J-Lead)
Supplier Device Package:20-PLCC (9x9)
Mounting Type:Surface Mount
