TNY284KG

TNY284KG

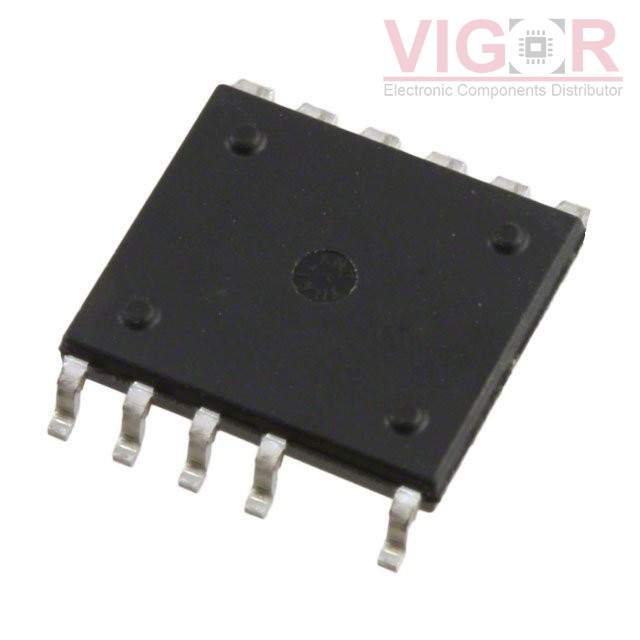

Image is for reference,
please contact us to get the real picture

Part No :

TNY284KG

Manufacturer
Power Integrations
Description
IC OFF-LINE SWITCH PWM 12SOP
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
TNY284KG PDF
Availability
2585 pieces
Unit Price
$0.00000

Current price of TNY284KG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TNY284KG Specifications
Type Description
Series:TinySwitch®-4
Package:Tube
Part Status:Discontinued at Digi-Key
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:725V
Topology:Flyback
Voltage - Start Up:-
Voltage - Supply (Vcc/Vdd):-
Duty Cycle:67%
Frequency - Switching:124kHz ~ 140kHz
Power (Watts):6 W
Fault Protection:Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
Control Features:EN
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
Supplier Device Package:12-ESOP
Mounting Type:Surface Mount
