IRSM808-105MH

IRSM808-105MH

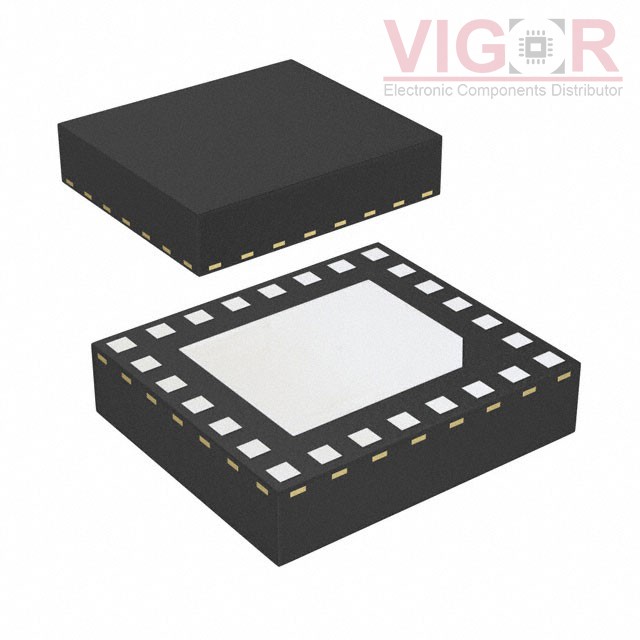

Image is for reference,
please contact us to get the real picture

Part No :

IRSM808-105MH

Manufacturer
IR (Infineon Technologies)
Description
IC MOTOR DRIVER 500V QFN
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
IRSM808-105MH PDF
Availability
699 pieces
Unit Price
$5.27000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of IRSM808-105MH is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

IRSM808-105MH Specifications
Type Description
Series:µIPM™
Package:Tray
Part Status:Active
Output Configuration:Half Bridge
Applications:AC Motors
Interface:Logic
Load Type:Inductive
Technology:UMOS
Rds On (Typ):580mOhm
Current - Output / Channel:10A
Current - Peak Output:-
Voltage - Supply:13.5V ~ 16.5V
Voltage - Load:400V (Max)
Operating Temperature:150°C (TJ)
Features:Bootstrap Circuit
Fault Protection:UVLO
Mounting Type:Surface Mount
Package / Case:31-PowerVQFN
Supplier Device Package:31-PQFN (8x9)
