SMA6865MZ LF2452

SMA6865MZ LF2452

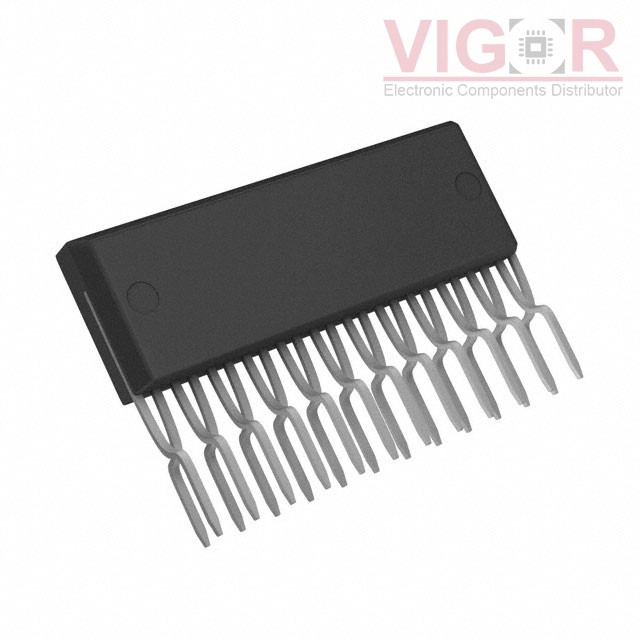

Image is for reference,
please contact us to get the real picture

Part No :

SMA6865MZ LF2452

Manufacturer
Sanken Electric Co., Ltd.
Description
IC MOTOR DRIVER DC 3PH 24SIP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
SMA6865MZ LF2452 PDF
Availability
3055 pieces
Unit Price
$9.15736

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of SMA6865MZ LF2452 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

SMA6865MZ LF2452 Specifications
Type Description
Series:-
Package:Tube
Part Status:Not For New Designs
Output Configuration:Half Bridge (3)
Applications:AC Motors
Interface:Logic
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):-
Current - Output / Channel:2.5A
Current - Peak Output:3.75A
Voltage - Supply:20V
Voltage - Load:400V (Max)
Operating Temperature:-20°C ~ 150°C (TJ)
Features:-
Fault Protection:Current Limiting, Over Temperature, UVLO
Mounting Type:Through Hole
Package / Case:24-SSIP Formed Leads
Supplier Device Package:24-SIP, LF2452
