MC33HB2001EK

MC33HB2001EK

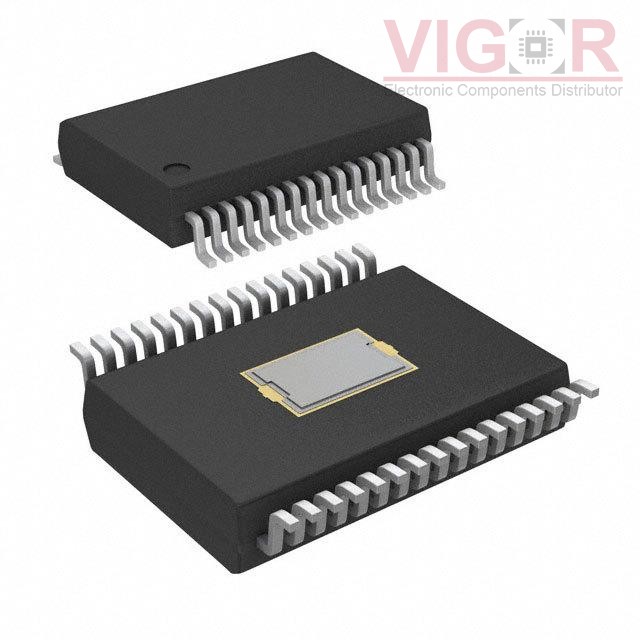

Image is for reference,
please contact us to get the real picture

Part No :

MC33HB2001EK

Manufacturer
NXP Semiconductors
Description
IC HALF-BRIDGE DRIVER SPI 32SOIC
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
MC33HB2001EK PDF
Availability
2945 pieces
Unit Price
$7.75000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of MC33HB2001EK is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

MC33HB2001EK Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:SPI
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):125mOhm LS (Max), 125mOhm HS (Max)
Current - Output / Channel:-
Current - Peak Output:-
Voltage - Supply:5V ~ 28V
Voltage - Load:5V ~ 28V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Slew Rate Controlled
Fault Protection:Over Temperature, Over Voltage, UVLO
Mounting Type:Surface Mount
Package / Case:32-SSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package:32-SOIC-EP
