DRV8332DKD

DRV8332DKD

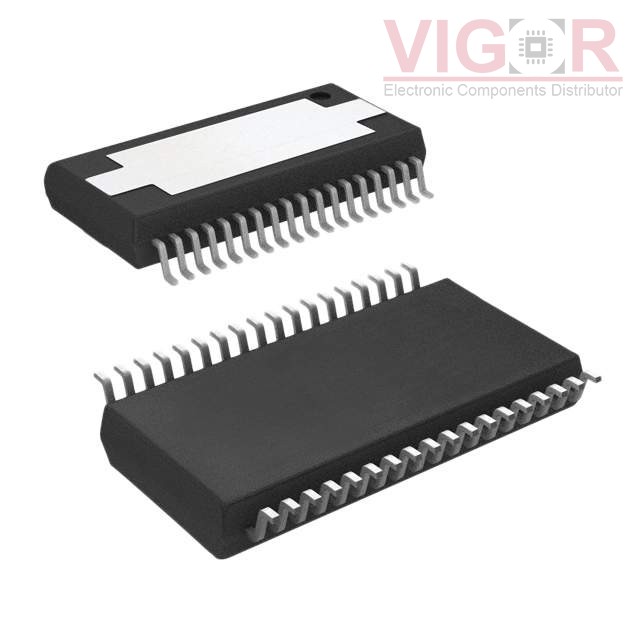

Image is for reference,
please contact us to get the real picture

Part No :

DRV8332DKD

Manufacturer
Texas Instruments
Description
IC BRIDGE DRIVER PAR 36HSSOP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
DRV8332DKD PDF
Availability
223 pieces
Unit Price
$12.52000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of DRV8332DKD is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

DRV8332DKD Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Half Bridge (3)
Applications:DC Motors, General Purpose
Interface:PWM
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):80mOhm LS, 80mOhm HS
Current - Output / Channel:8A
Current - Peak Output:13A
Voltage - Supply:10.8V ~ 13.2V
Voltage - Load:0V ~ 52.5V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Bootstrap Circuit, Status Flag
Fault Protection:Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type:Surface Mount
Package / Case:36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package:36-HSSOP
