SMA6861MZ LF2452

SMA6861MZ LF2452

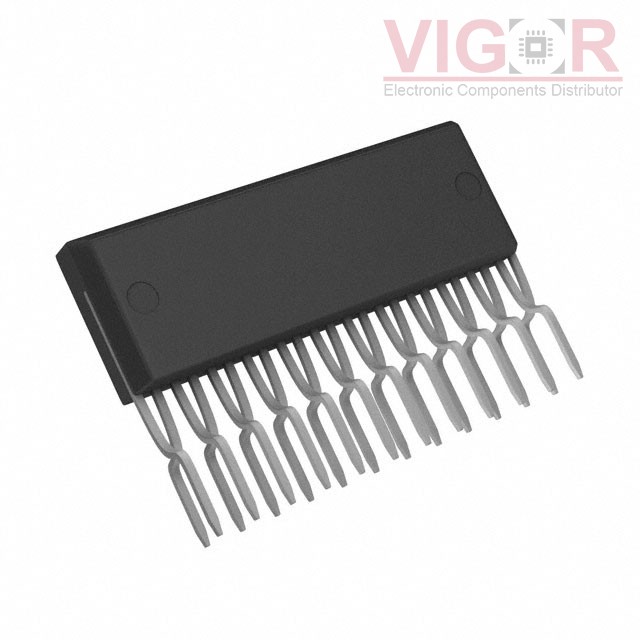

Image is for reference,
please contact us to get the real picture

Part No :

SMA6861MZ LF2452

Manufacturer
Sanken Electric Co., Ltd.
Description
IC MOTOR DRIVER DC 3PH 24SIP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
SMA6861MZ LF2452 PDF
Availability
2799 pieces
Unit Price
$5.28306

Current price of SMA6861MZ LF2452 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMA6861MZ LF2452 Specifications
Type Description
Series:-
Package:Tube
Part Status:Not For New Designs
Output Configuration:Half Bridge (3)
Applications:AC Motors
Interface:Logic
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):-
Current - Output / Channel:2A
Current - Peak Output:3A
Voltage - Supply:20V
Voltage - Load:200V (Max)
Operating Temperature:-20°C ~ 150°C (TJ)
Features:-
Fault Protection:Current Limiting, Over Temperature, UVLO
Mounting Type:Through Hole
Package / Case:24-SSIP Formed Leads
Supplier Device Package:24-SIP, LF2452
