CSD95472Q5MCT

CSD95472Q5MCT

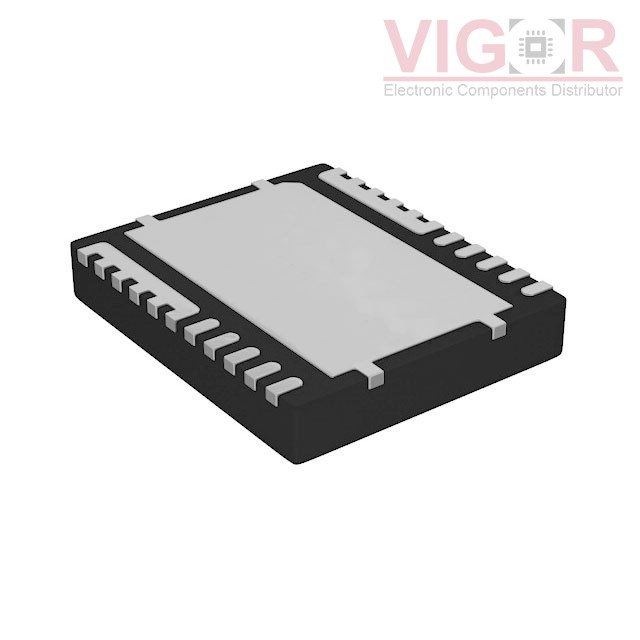

Image is for reference,
please contact us to get the real picture

Part No :

CSD95472Q5MCT

Manufacturer
Texas Instruments
Description
IC POWERSTAGE SYNC BUCK 12VSON
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
CSD95472Q5MCT PDF
Availability
242 pieces
Unit Price
$6.08000

Current price of CSD95472Q5MCT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD95472Q5MCT Specifications
Type Description
Series:NexFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:-
Applications:Synchronous Buck Converters
Interface:PWM
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):-
Current - Output / Channel:60A
Current - Peak Output:90A
Voltage - Supply:4.5V ~ 5.5V
Voltage - Load:4.5V ~ 16V
Operating Temperature:-55°C ~ 150°C (TJ)
Features:Bootstrap Circuit, Diode Emulation, Status Flag
Fault Protection:Current Limiting, Over Temperature
Mounting Type:Surface Mount
Package / Case:12-PowerTFDFN
Supplier Device Package:12-VSON (5x6)
