IRSM505-065PATR

IRSM505-065PATR

Image is for reference,
please contact us to get the real picture

Part No :

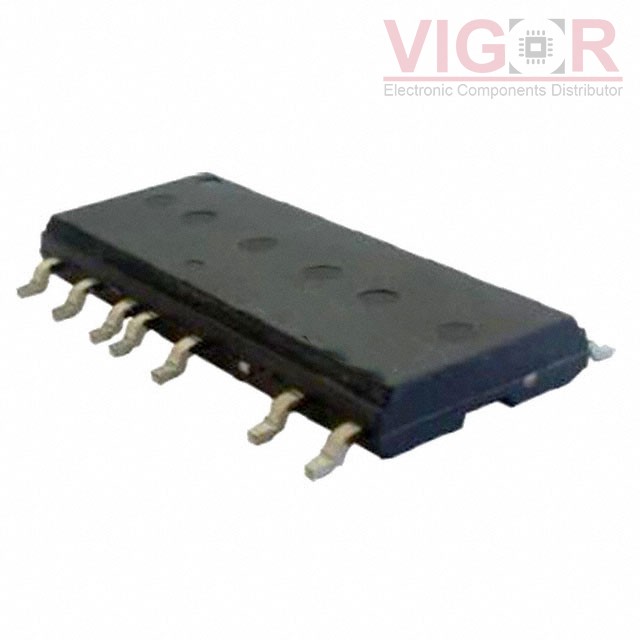

IRSM505-065PATR

Manufacturer
IR (Infineon Technologies)
Description
IC MOTOR DRIVER 500V 23SOP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
IRSM505-065PATR PDF
Availability
730 pieces
Unit Price
$10.39000

Current price of IRSM505-065PATR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRSM505-065PATR Specifications
Type Description
Series:µIPM™-DIP
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Half Bridge (3)
Applications:AC Motors
Interface:Logic
Load Type:Inductive
Technology:UMOS
Rds On (Typ):1Ohm
Current - Output / Channel:2.6A
Current - Peak Output:15A
Voltage - Supply:13.5V ~ 16.5V
Voltage - Load:400V (Max)
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Bootstrap Circuit
Fault Protection:UVLO
Mounting Type:Surface Mount
Package / Case:32-PowerSMD Module, 23 Leads
Supplier Device Package:23-SOP
