BA5947FM-E2

BA5947FM-E2

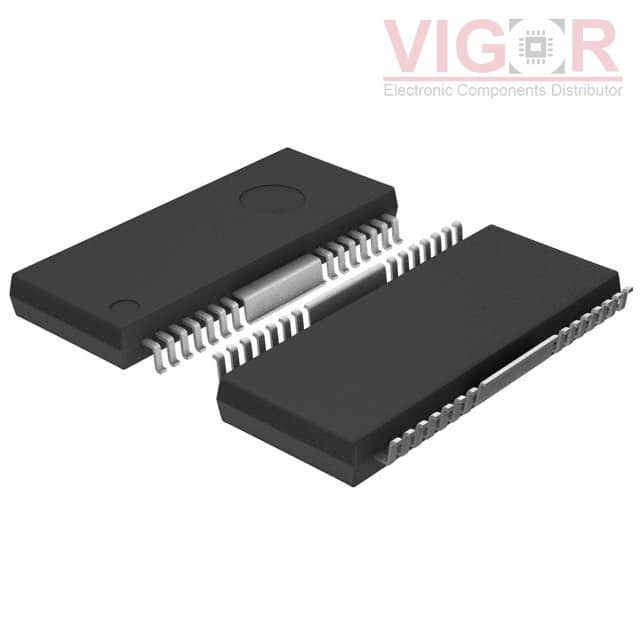

Image is for reference,
please contact us to get the real picture

Part No :

BA5947FM-E2

Manufacturer
ROHM Semiconductor
Description
IC BRIDGE DRIVER PAR 28HSOP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
BA5947FM-E2 PDF
Availability
1862 pieces
Unit Price
$2.32500

Current price of BA5947FM-E2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BA5947FM-E2 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Output Configuration:Half Bridge (8)
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:Bipolar
Rds On (Typ):-
Current - Output / Channel:13mA
Current - Peak Output:-
Voltage - Supply:6V ~ 13.2V
Voltage - Load:4.4V ~ 5.6V
Operating Temperature:-35°C ~ 85°C (TA)
Features:-
Fault Protection:Over Temperature
Mounting Type:Surface Mount
Package / Case:28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs
Supplier Device Package:28-HSOP-M
