LB1867M-TLM-H

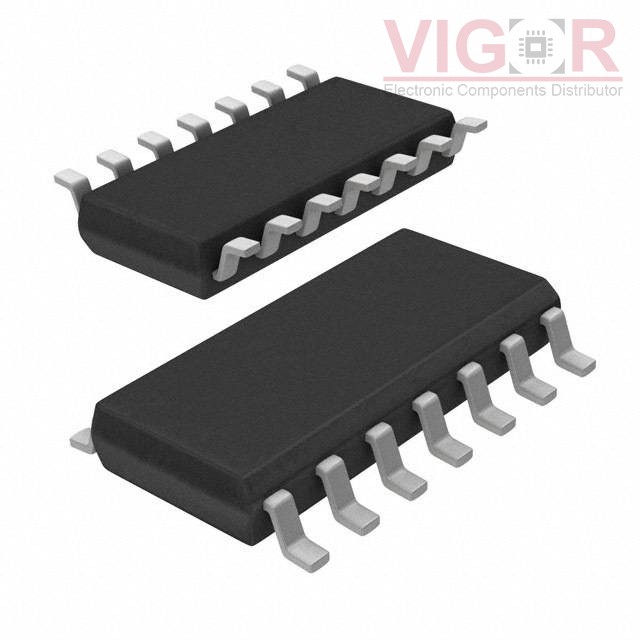

Image is for reference,
please contact us to get the real picture

Part No :: LB1867M-TLM-H

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC BRIDGE DRIVER ON/OFF MFP14S

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: LB1867M-TLM-H PDF

Availability: 1323 pieces

Unit Price: ~~$0.75557~~

Current price of LB1867M-TLM-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LB1867M-TLM-H Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	Bipolar
Rds On (Typ):	-
Current - Output / Channel:	1A
Current - Peak Output:	-
Voltage - Supply:	6.4V ~ 7V
Voltage - Load:	12V, 24V
Operating Temperature:	-30°C ~ 80°C (TA)
Features:	-
Fault Protection:	Over Temperature
Mounting Type:	Surface Mount
Package / Case:	14-LSOP (0.173", 4.40mm Width)
Supplier Device Package:	14-MFPS

Please confirm the specifications of the products when ordering.
