LB1863M-TLM-E

LB1863M-TLM-E

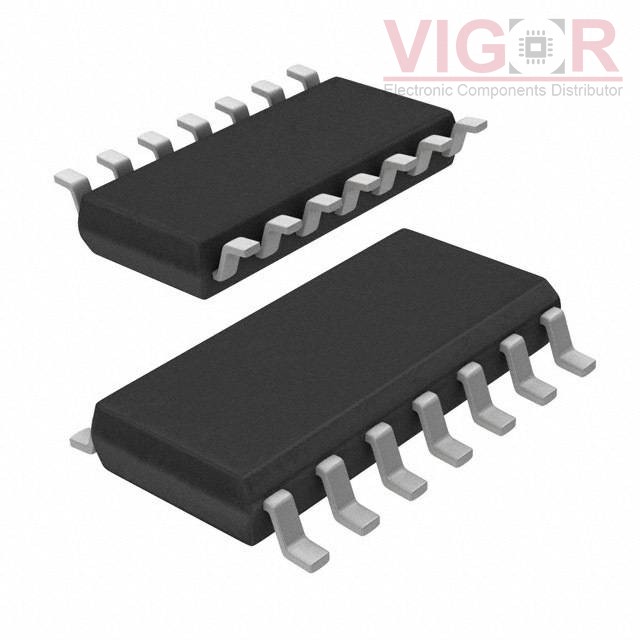

Image is for reference,
please contact us to get the real picture

Part No :

LB1863M-TLM-E

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC BRIDGE DRIVER ON/OFF MFP14S
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
LB1863M-TLM-E PDF
Availability
2000 pieces
Unit Price
$0.53297

Current price of LB1863M-TLM-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LB1863M-TLM-E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:Bipolar
Rds On (Typ):-
Current - Output / Channel:1.5A
Current - Peak Output:-
Voltage - Supply:6.4V ~ 7V
Voltage - Load:24V
Operating Temperature:-30°C ~ 80°C (TA)
Features:-
Fault Protection:Over Temperature
Mounting Type:Surface Mount
Package / Case:14-LSOP (0.173", 4.40mm Width)
Supplier Device Package:14-SOIC / 14MFPS
