SCM1245MF

SCM1245MF

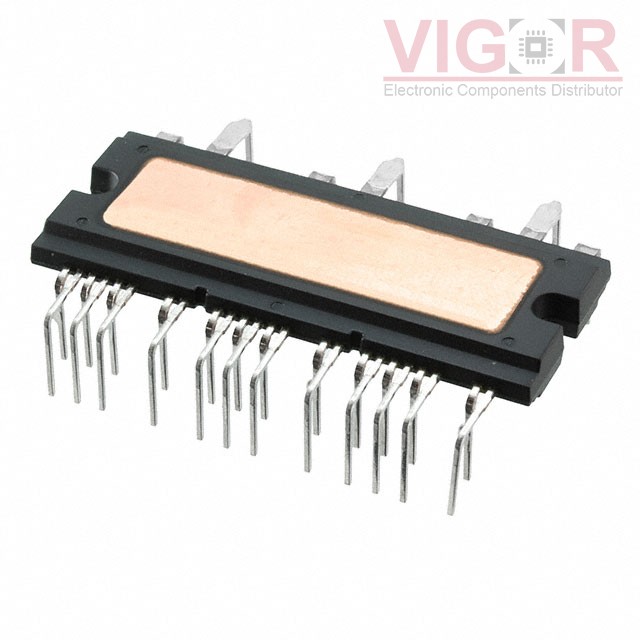

Image is for reference,
please contact us to get the real picture

Part No :

SCM1245MF

Manufacturer
Sanken Electric Co., Ltd.
Description
IC BRIDGE DRIVER PAR SCM33
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
SCM1245MF PDF
Availability
1879 pieces
Unit Price
$13.86692

Current price of SCM1245MF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SCM1245MF Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Half Bridge (3)
Applications:AC Motors
Interface:Logic
Load Type:Inductive
Technology:IGBT
Rds On (Typ):-
Current - Output / Channel:20A
Current - Peak Output:30A
Voltage - Supply:13.5V ~ 16.5V
Voltage - Load:400V (Max)
Operating Temperature:125°C (TJ)
Features:Auto Restart, Bootstrap Circuit
Fault Protection:Current Limiting, Over Temperature, UVLO
Mounting Type:Through Hole
Package / Case:33-PowerDIP (1.307", 33.20mm) Exposed Pad
Supplier Device Package:33-PowerDIP LF2552
