AP1017AEN

AP1017AEN

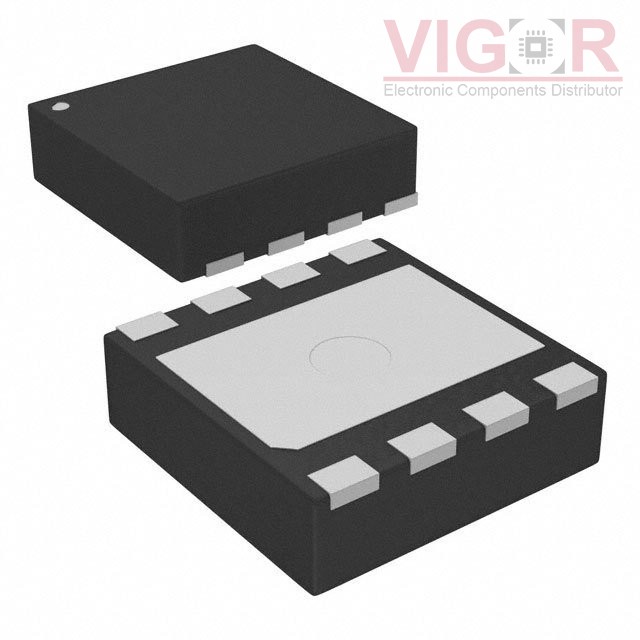

Image is for reference,
please contact us to get the real picture

Part No :

AP1017AEN

Manufacturer
Asahi Kasei Microdevices / AKM Semiconductor
Description
IC H-BRIDGE DVR 1CH 12V 8SON
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
AP1017AEN PDF
Availability
0 pieces
Unit Price
$0.95000

Current price of AP1017AEN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP1017AEN Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Output Configuration:Half Bridge (2)
Applications:General Purpose
Interface:Logic
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):470mOhm LS + HS
Current - Output / Channel:1.56A
Current - Peak Output:3.3A
Voltage - Supply:2.7V ~ 3.6V
Voltage - Load:1.8V ~ 12V
Operating Temperature:-30°C ~ 150°C (TJ)
Features:-
Fault Protection:Over Temperature, UVLO
Mounting Type:Surface Mount
Package / Case:8-UFDFN Exposed Pad
Supplier Device Package:8-SON (2x2)
