MP6536DU-LF-Z

MP6536DU-LF-Z

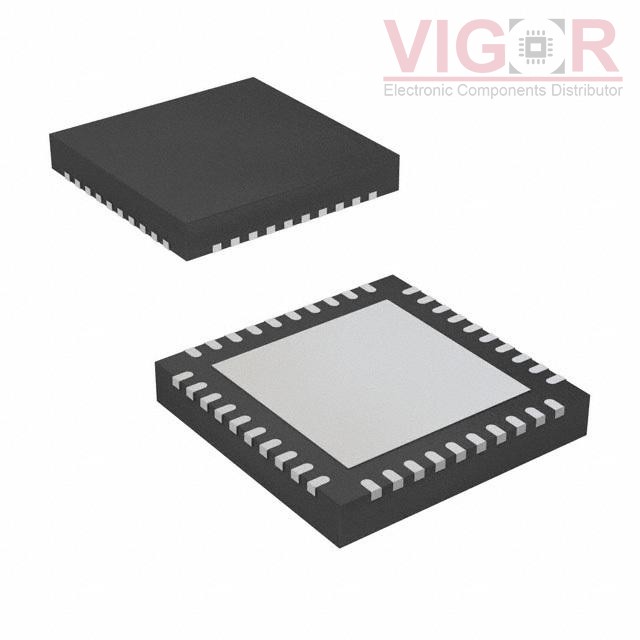

Image is for reference,
please contact us to get the real picture

Part No :

MP6536DU-LF-Z

Manufacturer
MPS (Monolithic Power Systems)
Description
26V, 5.5A, 3-CHANNEL HALF-BRIDGE
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
MP6536DU-LF-Z PDF
Availability
196 pieces
Unit Price
$3.15000

Current price of MP6536DU-LF-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MP6536DU-LF-Z Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Half Bridge (3)
Applications:DC Motors, General Purpose
Interface:Logic, PWM
Load Type:Capacitive
Technology:Power MOSFET
Rds On (Typ):140mOhm LS + HS
Current - Output / Channel:5.5A
Current - Peak Output:5.5A
Voltage - Supply:5V ~ 26V
Voltage - Load:5V ~ 26V
Operating Temperature:-40°C ~ 125°C (TJ)
Features:Bootstrap Circuit
Fault Protection:Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type:Surface Mount
Package / Case:40-VFQFN Exposed Pad
Supplier Device Package:40-QFN (5x5)
