LB1836M-TLM-E

LB1836M-TLM-E

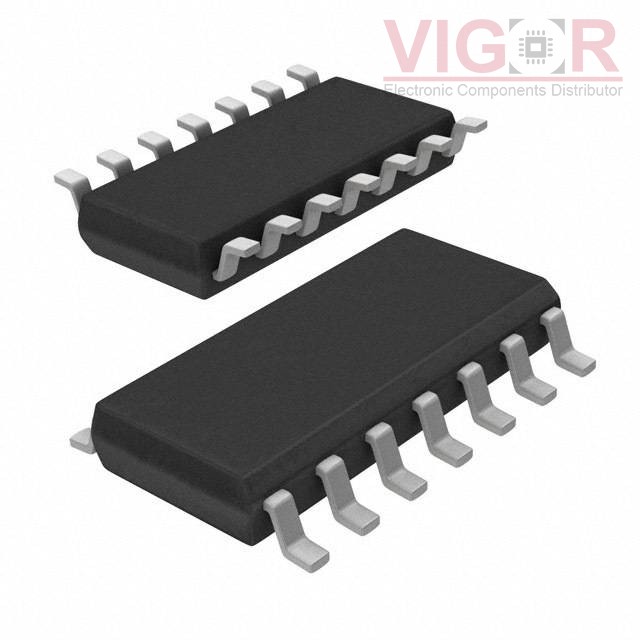

Image is for reference,
please contact us to get the real picture

Part No :

LB1836M-TLM-E

Manufacturer
Description
IC MOTOR DRIVER PAR MFP14S
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
LB1836M-TLM-E PDF
Availability
8020 pieces
Unit Price
$2.88000

Current price of LB1836M-TLM-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LB1836M-TLM-E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Half Bridge (4)
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:Bipolar
Rds On (Typ):-
Current - Output / Channel:1A
Current - Peak Output:-
Voltage - Supply:2.5V ~ 9V
Voltage - Load:1.8V ~ 9V
Operating Temperature:-40°C ~ 85°C (TA)
Features:-
Fault Protection:Over Temperature
Mounting Type:Surface Mount
Package / Case:14-LSOP (0.173", 4.40mm Width)
Supplier Device Package:14-MFPS
