E-L298N

E-L298N

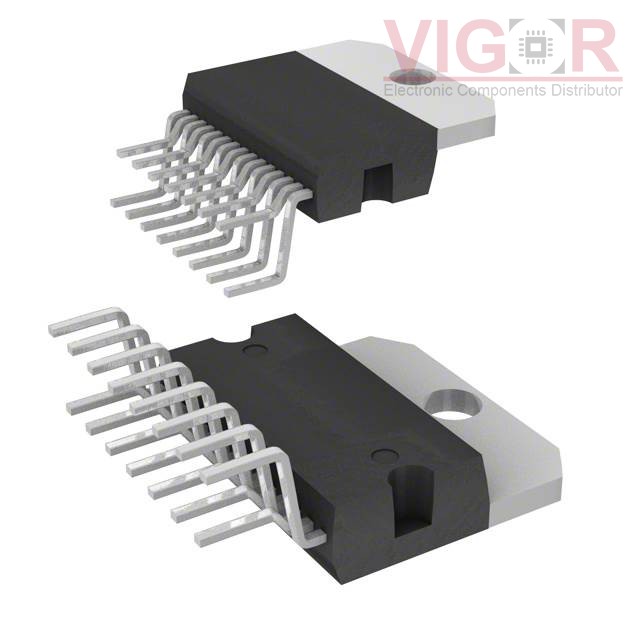

Image is for reference,
please contact us to get the real picture

Part No :

E-L298N

Manufacturer
STMicroelectronics
Description
IC BRIDGE DRIVER PAR 15MULTIWATT
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
E-L298N PDF
Availability
450 pieces
Unit Price
$0.00000

Current price of E-L298N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

E-L298N Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Configuration:Half Bridge (4)
Applications:DC Motors, Relays, Solenoids, Stepper Motors
Interface:Logic
Load Type:Inductive
Technology:Bipolar
Rds On (Typ):-
Current - Output / Channel:-
Current - Peak Output:2A
Voltage - Supply:4.5V ~ 7V
Voltage - Load:4.8V ~ 46V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:-
Fault Protection:Current Limiting, Over Temperature
Mounting Type:Through Hole
Package / Case:Multiwatt-15 (Vertical, Bent and Staggered Leads)
Supplier Device Package:15-Multiwatt
