BTS7960P

BTS7960P

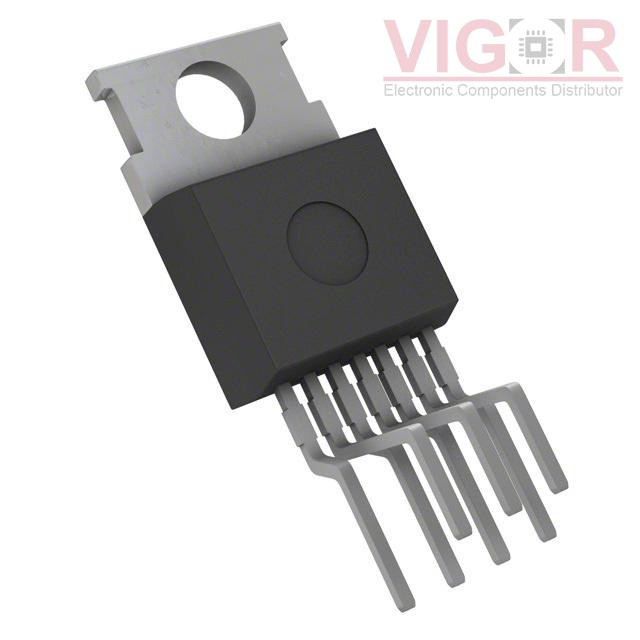

Image is for reference,
please contact us to get the real picture

Part No :

BTS7960P

Manufacturer
IR (Infineon Technologies)
Description
IC NOVALITHIC 1/2 BRIDGE TO220-7
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
BTS7960P PDF
Availability
6999 pieces
Unit Price
$0.00000

Current price of BTS7960P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BTS7960P Specifications
Type Description
Series:NovalithIC™
Package:Tube
Part Status:Obsolete
Output Configuration:Half Bridge
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:DMOS
Rds On (Typ):9mOhm LS, 7mOhm HS
Current - Output / Channel:40A
Current - Peak Output:60A
Voltage - Supply:5.5V ~ 27.5V
Voltage - Load:5.5V ~ 27.5V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Latch Function, Slew Rate Controlled, Status Flag
Fault Protection:Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type:Through Hole
Package / Case:TO-220-7 (Formed Leads)
Supplier Device Package:P-TO220-7
