BTS7930B

BTS7930B

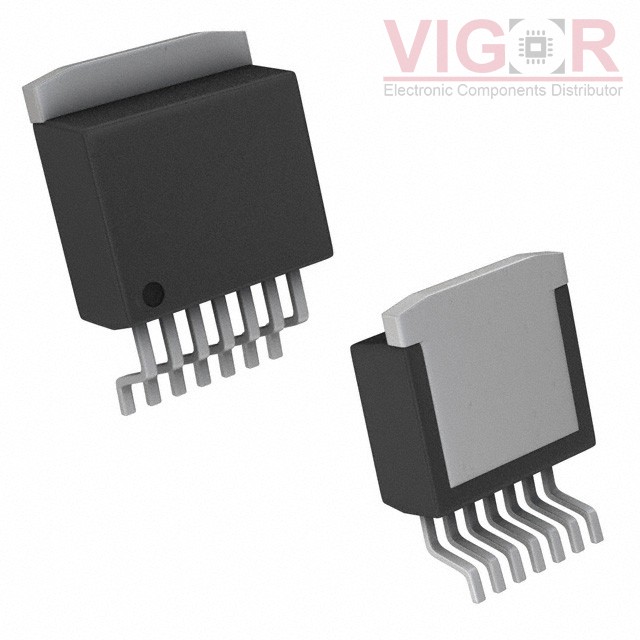

Image is for reference,
please contact us to get the real picture

Part No :

BTS7930B

Manufacturer
IR (Infineon Technologies)
Description
IC NOVALITHIC 1/2 BRIDGE TO263-7
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
BTS7930B PDF
Availability
1893 pieces
Unit Price
$0.00000

Current price of BTS7930B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BTS7930B Specifications
Type Description
Series:NovalithIC™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Output Configuration:Half Bridge
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:DMOS
Rds On (Typ):18mOhm LS, 10mOhm HS
Current - Output / Channel:20A
Current - Peak Output:50A
Voltage - Supply:5.5V ~ 28V
Voltage - Load:5.5V ~ 28V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Latch Function, Slew Rate Controlled, Status Flag
Fault Protection:Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type:Surface Mount
Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package:P-TO263-7
