2EDN7524RXUMA1

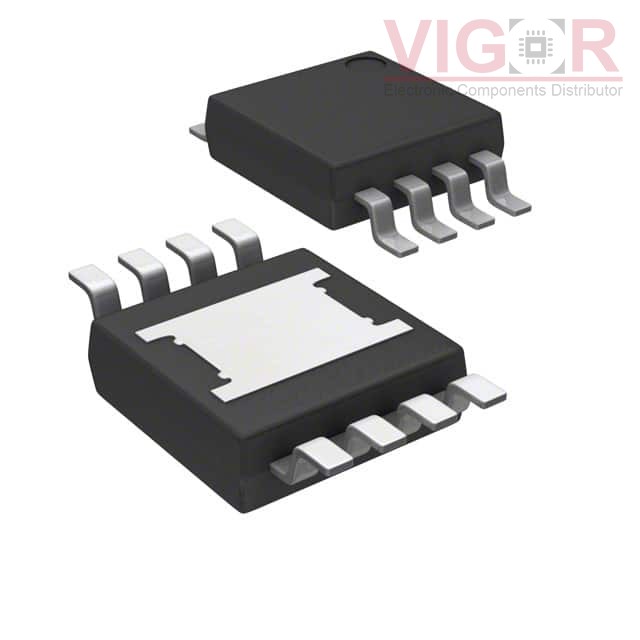

Image is for reference,
please contact us to get the real picture

Part No :: 2EDN7524RXUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC GATE DRVR LOW-SIDE TSSLP-8

Catalog: PMIC - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: 2EDN7524RXUMA1 PDF

Availability: 4397 pieces

Unit Price: ~~$1.64000~~

Current price of 2EDN7524RXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2EDN7524RXUMA1 Specifications

Type	Description
Series:	EiceDriver™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Discontinued at Digi-Key
Driven Configuration:	Low-Side
Channel Type:	Independent
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	4.5V ~ 20V
Logic Voltage - VIL, VIH:	-
Current - Peak Output (Source, Sink):	5A, 5A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	-
Rise / Fall Time (Typ):	5.3ns, 4.5ns
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	PG-TSSLP-8

Please confirm the specifications of the products when ordering.
