TSC426MJA/883B

TSC426MJA/883B

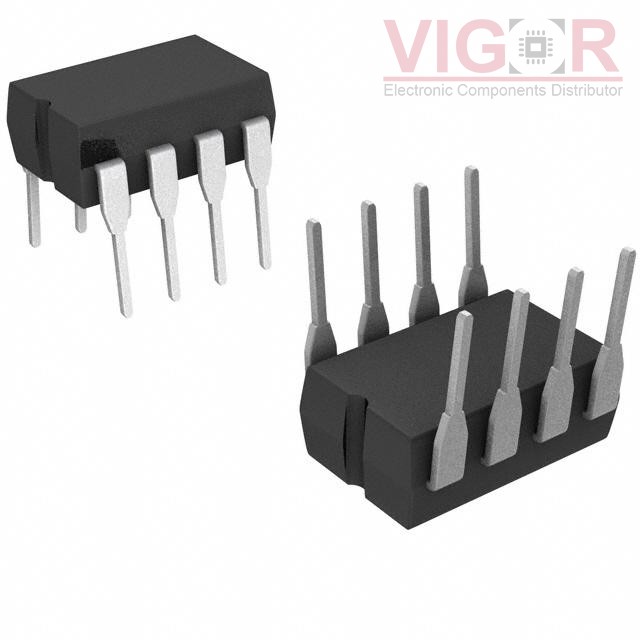

Image is for reference,
please contact us to get the real picture

Part No :

TSC426MJA/883B

Manufacturer
Maxim Integrated
Description
IC GATE DRVR LOW-SIDE 8CERDIP
Catalog
PMIC - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
TSC426MJA/883B PDF
Availability
1430 pieces
Unit Price
$6.00000

Current price of TSC426MJA/883B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSC426MJA/883B Specifications
Type Description
Series:Military, MIL-STD-883
Package:Tube
Part Status:Active
Driven Configuration:Low-Side
Channel Type:Independent
Number of Drivers:2
Gate Type:N-Channel, P-Channel MOSFET
Voltage - Supply:4.5V ~ 18V
Logic Voltage - VIL, VIH:0.8V, 2.4V
Current - Peak Output (Source, Sink):1.5A, 1.5A
Input Type:Inverting
High Side Voltage - Max (Bootstrap):-
Rise / Fall Time (Typ):25ns, 25ns
Operating Temperature:-55°C ~ 125°C (TA)
Mounting Type:Through Hole
Package / Case:8-CDIP (0.300", 7.62mm)
Supplier Device Package:8-CERDIP
