2EDL05N06PJXUMA1

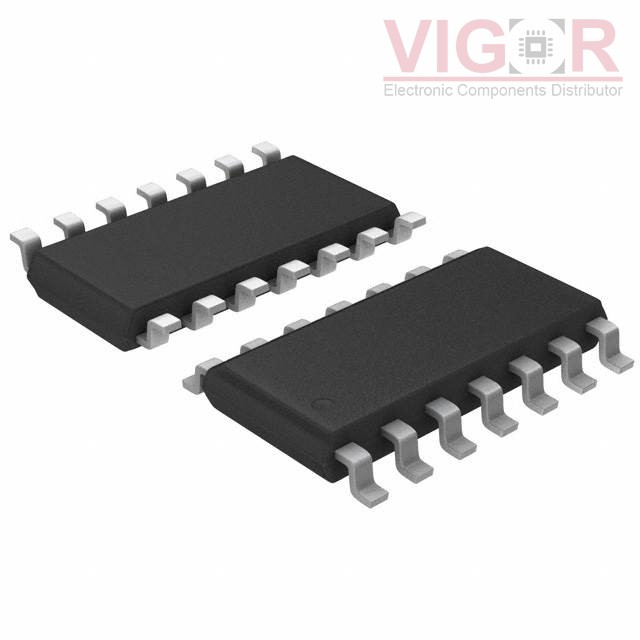

Image is for reference,
please contact us to get the real picture

Part No :: 2EDL05N06PJXUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC GATE DRVR HALF-BRIDGE 14DSO

Catalog: PMIC - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 19 - Jul 23 2025

DataSheet: 2EDL05N06PJXUMA1 PDF

Availability: 0 pieces

Unit Price: ~~$1.82000~~

Current price of 2EDL05N06PJXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2EDL05N06PJXUMA1 Specifications

Type	Description
Series:	EiceDriver™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	Independent
Number of Drivers:	2
Gate Type:	IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply:	10V ~ 25V
Logic Voltage - VIL, VIH:	1.1V, 1.7V
Current - Peak Output (Source, Sink):	-
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	600 V
Rise / Fall Time (Typ):	48ns, 24ns
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	14-DSO
