IR2136SPBF

IR2136SPBF

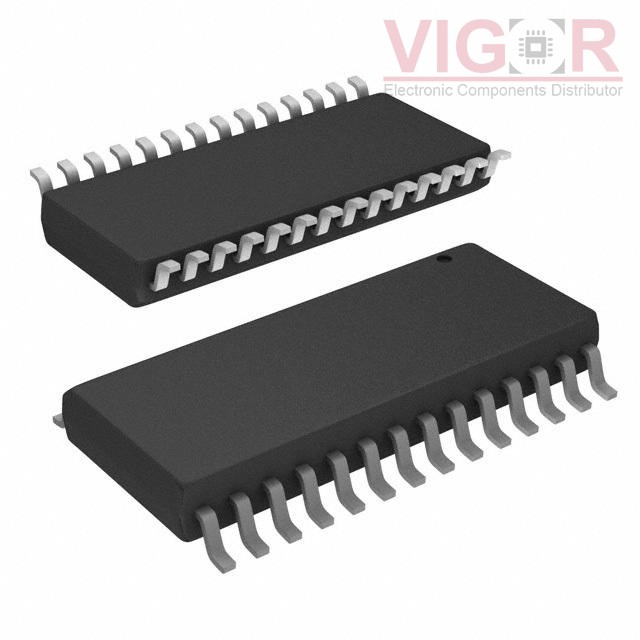

Image is for reference,
please contact us to get the real picture

Part No :

IR2136SPBF

Manufacturer
IR (Infineon Technologies)
Description
IC GATE DRVR HALF-BRIDGE 28SOIC
Catalog
PMIC - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
IR2136SPBF PDF
Availability
693 pieces
Unit Price
$4.32000

Current price of IR2136SPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IR2136SPBF Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Driven Configuration:Half-Bridge
Channel Type:3-Phase
Number of Drivers:6
Gate Type:IGBT, N-Channel MOSFET
Voltage - Supply:10V ~ 20V
Logic Voltage - VIL, VIH:0.8V, 3V
Current - Peak Output (Source, Sink):200mA, 350mA
Input Type:Inverting
High Side Voltage - Max (Bootstrap):600 V
Rise / Fall Time (Typ):125ns, 50ns
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC
