DGD0504FN-7

DGD0504FN-7

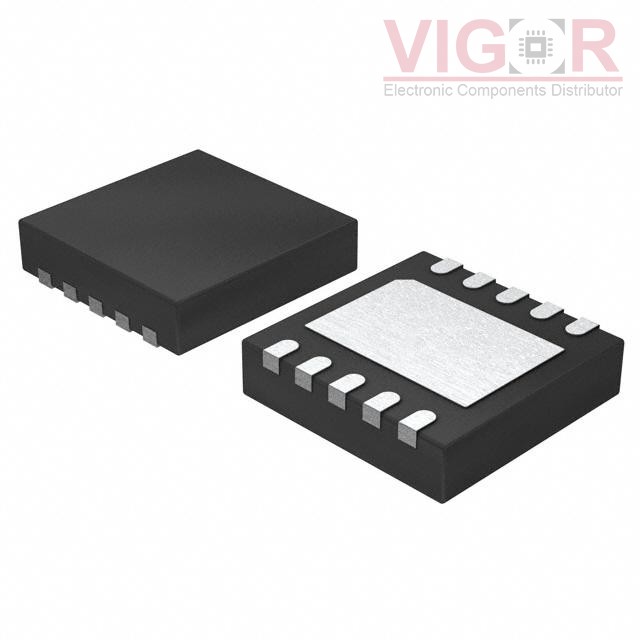

Image is for reference,
please contact us to get the real picture

Part No :

DGD0504FN-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC GATE DRV HALF-BRDG DFN3030-10
Catalog
PMIC - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
DGD0504FN-7 PDF
Availability
535 pieces
Unit Price
$1.33000

Current price of DGD0504FN-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DGD0504FN-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Driven Configuration:Half-Bridge
Channel Type:Synchronous
Number of Drivers:2
Gate Type:N-Channel MOSFET
Voltage - Supply:10V ~ 20V
Logic Voltage - VIL, VIH:0.8V, 2.5V
Current - Peak Output (Source, Sink):290mA, 600mA
Input Type:Non-Inverting
High Side Voltage - Max (Bootstrap):100 V
Rise / Fall Time (Typ):70ns, 35ns
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:10-WFDFN Exposed Pad
Supplier Device Package:W-DFN3030-10 (Type TH)
