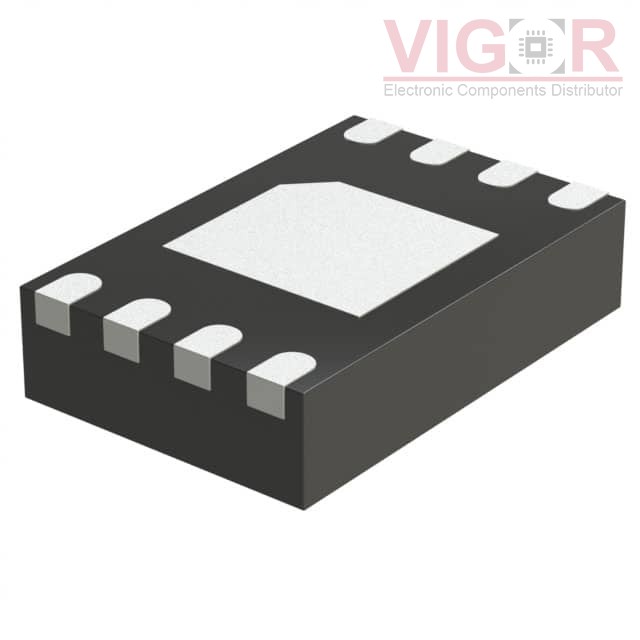

MCP14A0305-E/MNY

MCP14A0305-E/MNY

Image is for reference,
please contact us to get the real picture

Part No :

MCP14A0305-E/MNY

Manufacturer
Roving Networks / Microchip Technology
Description
IC GATE DRVR HI/LOW SIDE 8TDFN
Catalog
PMIC - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
MCP14A0305-E/MNY PDF
Availability
6000 pieces
Unit Price
$0.71000

Current price of MCP14A0305-E/MNY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MCP14A0305-E/MNY Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Driven Configuration:Half-Bridge
Channel Type:Independent
Number of Drivers:2
Gate Type:IGBT
Voltage - Supply:4.5V ~ 18V
Logic Voltage - VIL, VIH:0.8V, 2V
Current - Peak Output (Source, Sink):3A, 3A
Input Type:Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap):-
Rise / Fall Time (Typ):12ns, 12ns
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-WFDFN Exposed Pad
Supplier Device Package:8-TDFN (2x3)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TC4426VUA713

TC4426VUA713

IC GATE DRVR LOW-SIDE 8MSOP

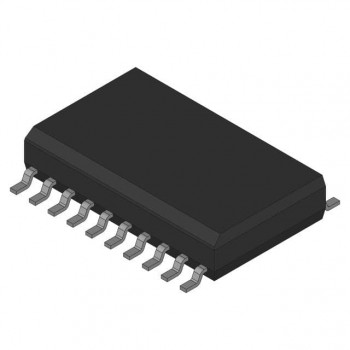

HOT EL7242CNZ-INT

EL7242CNZ-INT

AND GATE BASED MOSFET DRIVER

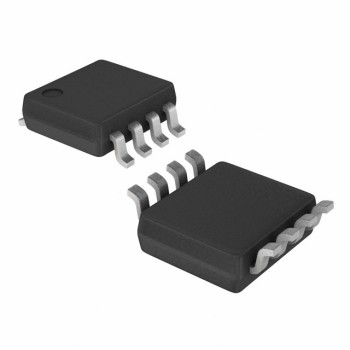

HOT UCC27322TDGKREP
