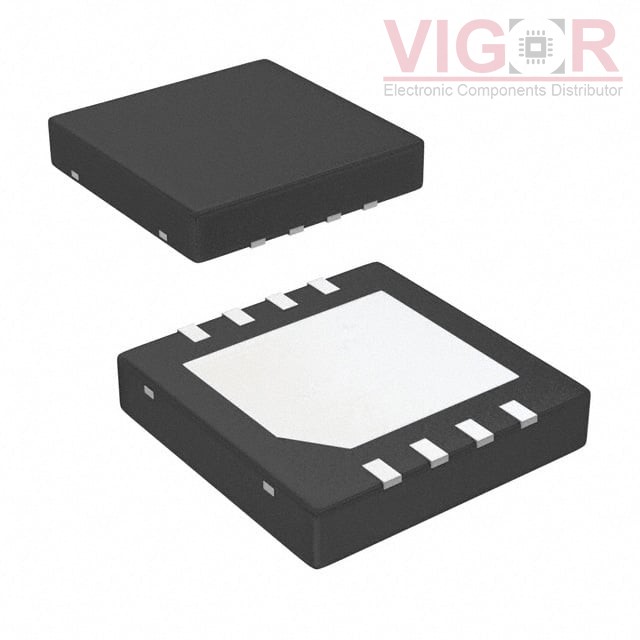

LM5109ASD/NOPB

LM5109ASD/NOPB

Image is for reference,
please contact us to get the real picture

Part No :

LM5109ASD/NOPB

Manufacturer
Texas Instruments
Description
IC GATE DRVR HALF-BRIDGE 8WSON
Catalog
PMIC - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
LM5109ASD/NOPB PDF
Availability
27699 pieces
Unit Price
$1.54000

Current price of LM5109ASD/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LM5109ASD/NOPB Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Driven Configuration:Half-Bridge
Channel Type:Independent
Number of Drivers:2
Gate Type:N-Channel MOSFET
Voltage - Supply:8V ~ 14V
Logic Voltage - VIL, VIH:0.8V, 2.2V
Current - Peak Output (Source, Sink):1A, 1A
Input Type:Non-Inverting
High Side Voltage - Max (Bootstrap):108 V
Rise / Fall Time (Typ):15ns, 15ns
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-WDFN Exposed Pad
Supplier Device Package:8-WSON (4x4)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT EL7158IS

EL7158IS

HALF BRIDGE PERIPHERAL DRIVER
HOT ISL6612ACBZ

ISL6612ACBZ

IC GATE DRVR HALF-BRIDGE 8SOIC
HOT UC2707Q

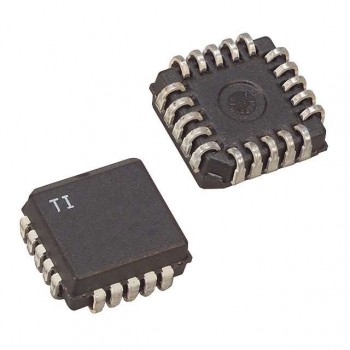

UC2707Q
