AL5816W5-7

AL5816W5-7

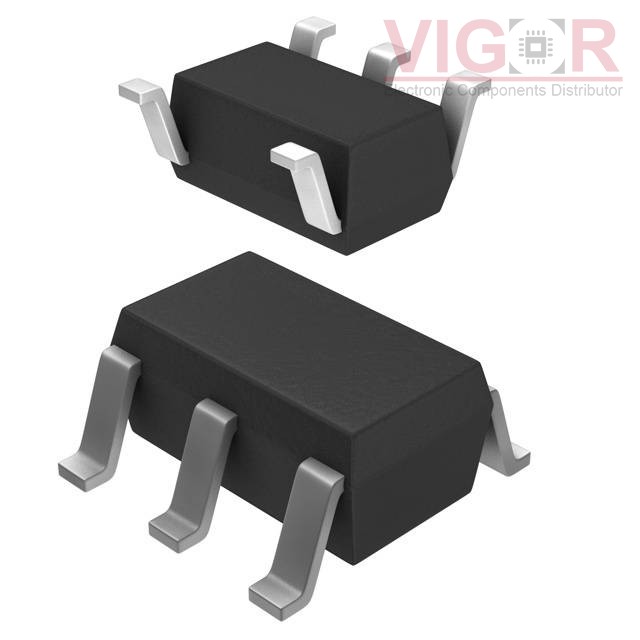

Image is for reference,
please contact us to get the real picture

Part No :

AL5816W5-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
LED LINEAR DRIVER SOT25 T&R 3K
Catalog
PMIC - LED Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
AL5816W5-7 PDF
Availability
40000 pieces
Unit Price
$0.56000

Current price of AL5816W5-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AL5816W5-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Linear
Topology:-
Internal Switch(s):Yes
Number of Outputs:1
Voltage - Supply (Min):4.5V
Voltage - Supply (Max):60V
Voltage - Output:4V
Current - Output / Channel:15mA
Frequency:-
Dimming:PWM
Applications:Lighting
Operating Temperature:-40°C ~ 105°C (TA)
Mounting Type:Surface Mount
Package / Case:SC-74A, SOT-753
Supplier Device Package:SOT-25
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
