AL5816QW5-7

AL5816QW5-7

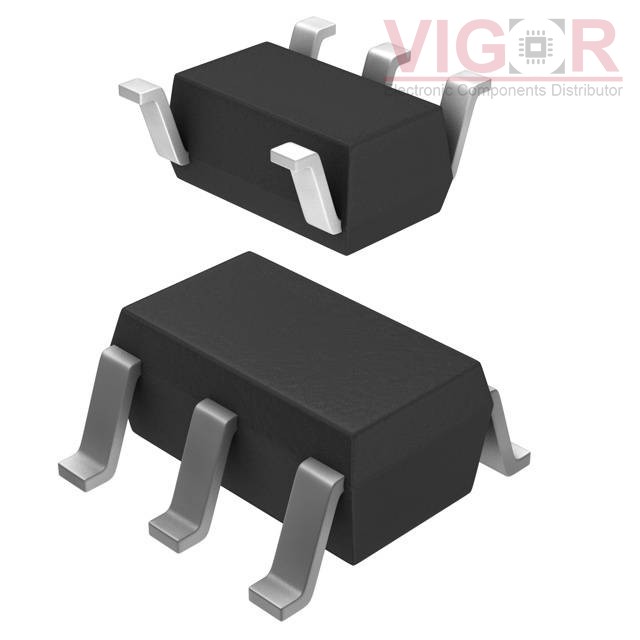

Image is for reference,
please contact us to get the real picture

Part No :

AL5816QW5-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC LED LINEAR DRIVER SOT25
Catalog
PMIC - LED Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
AL5816QW5-7 PDF
Availability
9145 pieces
Unit Price
$0.63000

Current price of AL5816QW5-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AL5816QW5-7 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Linear
Topology:-
Internal Switch(s):Yes
Number of Outputs:1
Voltage - Supply (Min):4.5V
Voltage - Supply (Max):60V
Voltage - Output:3V
Current - Output / Channel:15mA
Frequency:50kHz
Dimming:PWM
Applications:Automotive
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:SC-74A, SOT-753
Supplier Device Package:SOT-25
