UCC3626DW

UCC3626DW

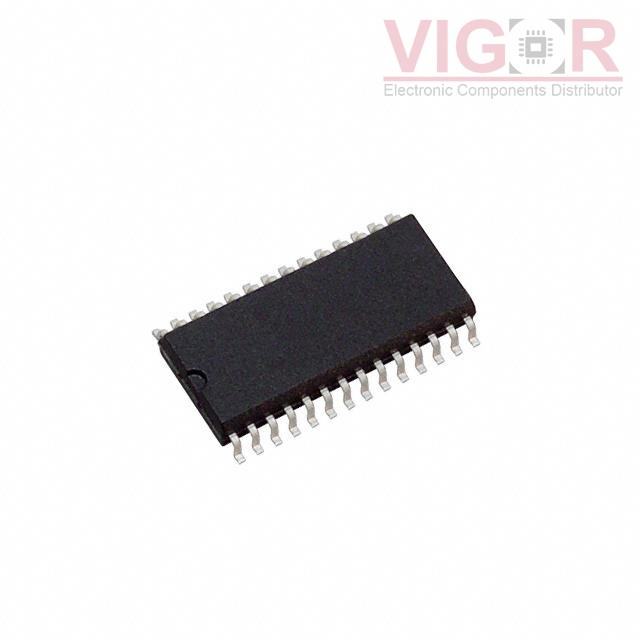

Image is for reference,
please contact us to get the real picture

Part No :

UCC3626DW

Manufacturer
Texas Instruments
Description
IC MOTOR DRIVER 11V-14.5V 28SOIC
Catalog
PMIC - Motor Drivers, Controllers
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
UCC3626DW PDF
Availability
1120 pieces
Unit Price
$14.34000

Current price of UCC3626DW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UCC3626DW Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Motor Type - Stepper:-
Motor Type - AC, DC:Brushless DC (BLDC)
Function:Controller - Commutation, Direction Management
Output Configuration:Pre-Driver - Half Bridge (3)
Interface:PWM
Technology:-
Step Resolution:-
Applications:General Purpose
Current - Output:-
Voltage - Supply:11V ~ 14.5V
Voltage - Load:-
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Surface Mount
Package / Case:28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC
