E-L6258EX

E-L6258EX

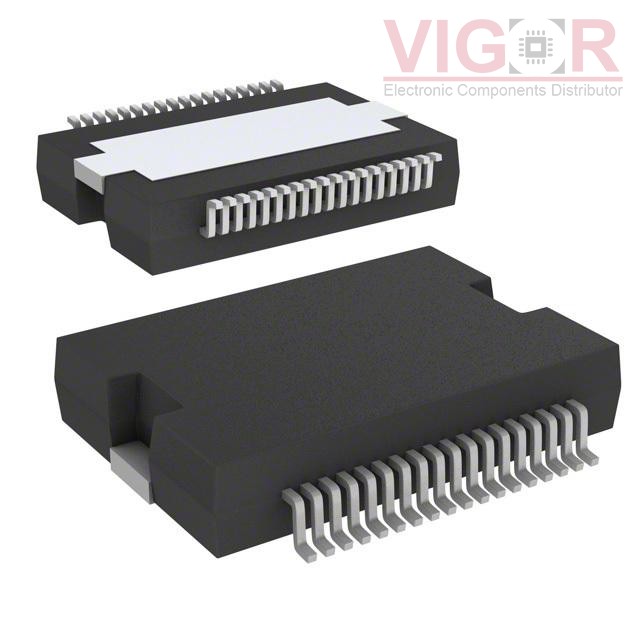

Image is for reference,
please contact us to get the real picture

Part No :

E-L6258EX

Manufacturer
STMicroelectronics
Description
IC MOTOR DRIVER BIPLR 36POWERSO
Catalog
PMIC - Motor Drivers, Controllers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
E-L6258EX PDF
Availability
148 pieces
Unit Price
$6.98000

Current price of E-L6258EX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

E-L6258EX Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Motor Type - Stepper:Bipolar
Motor Type - AC, DC:Brushed DC
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (4)
Interface:Parallel
Technology:DMOS
Step Resolution:1, 1/2, 1/4, 1/8, 1/16
Applications:General Purpose
Current - Output:1.5A
Voltage - Supply:4.75V ~ 5.25V
Voltage - Load:12V ~ 40V
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package:PowerSO-36
