LB11946-E

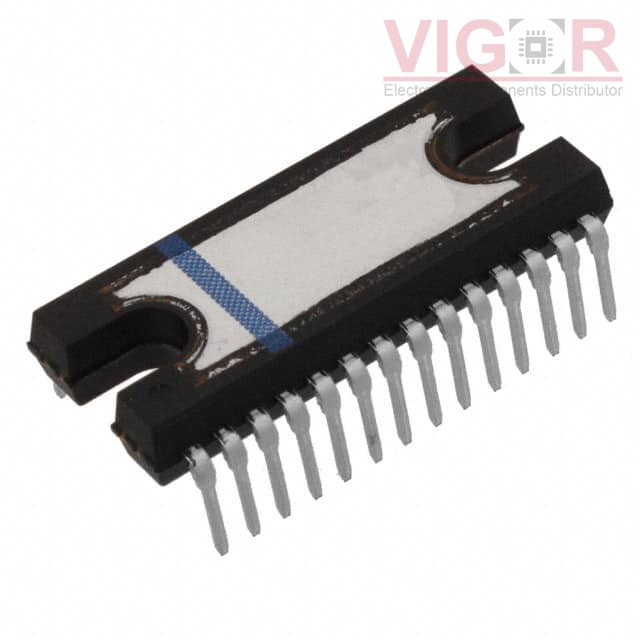

Image is for reference,
please contact us to get the real picture

Part No :: LB11946-E

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC MOTOR DRIVER BIPOLAR 28HDIP

Catalog: PMIC - Motor Drivers, Controllers

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: LB11946-E PDF

Availability: 4537 pieces

Unit Price: ~~$0.00000~~

Current price of LB11946-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LB11946-E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	Parallel, Serial
Technology:	Bipolar
Step Resolution:	-
Applications:	General Purpose
Current - Output:	1A
Voltage - Supply:	3V ~ 3.6V, 4.5V ~ 5.5V
Voltage - Load:	10V ~ 45V
Operating Temperature:	-25°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	28-SDIP (0.500", 12.70mm) Exposed Pad
Supplier Device Package:	28-HDIP

Please confirm the specifications of the products when ordering.
