AH284-YL-13

AH284-YL-13

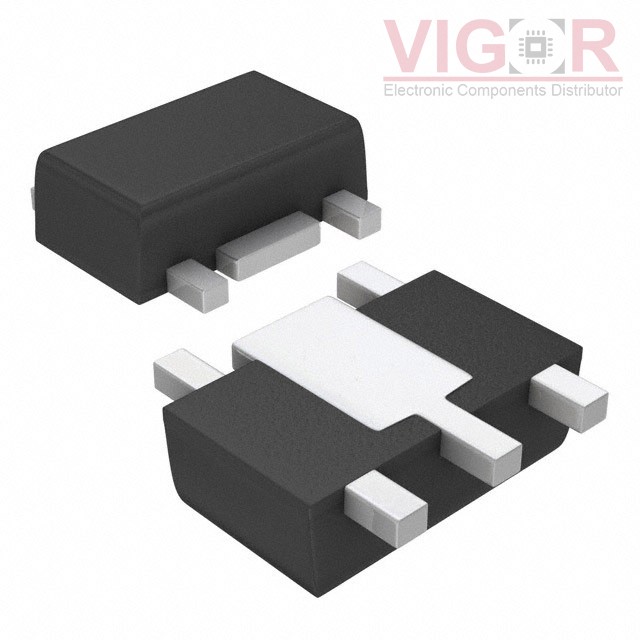

Image is for reference,
please contact us to get the real picture

Part No :

AH284-YL-13

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC MOTOR DRIVER 3.8V-20V SOT89-5
Catalog
PMIC - Motor Drivers, Controllers
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
AH284-YL-13 PDF
Availability
4615 pieces
Unit Price
$0.00000

Current price of AH284-YL-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH284-YL-13 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Motor Type - Stepper:-
Motor Type - AC, DC:Brushless DC (BLDC)
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Low Side (2)
Interface:On/Off
Technology:Power MOSFET
Step Resolution:-
Applications:Fan Motor Driver
Current - Output:500mA
Voltage - Supply:3.8V ~ 20V
Voltage - Load:3.8V ~ 20V
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-89-5/6
Supplier Device Package:SOT-89-5
