TB6549HQ(O)

TB6549HQ(O)

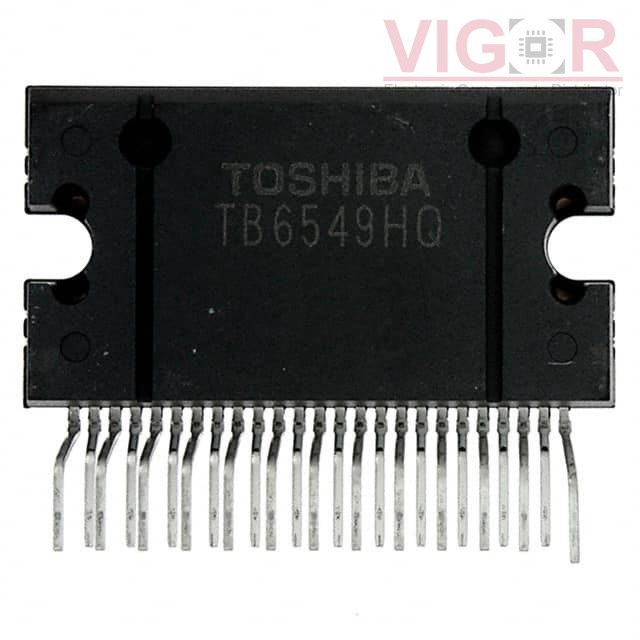

Image is for reference,
please contact us to get the real picture

Part No :

TB6549HQ(O)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
IC MOTOR DRIVER 10V-27V 25HZIP
Catalog
PMIC - Motor Drivers, Controllers
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
TB6549HQ(O) PDF
Availability
3000 pieces
Unit Price
$0.00000

Current price of TB6549HQ(O) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TB6549HQ(O) Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Motor Type - Stepper:-
Motor Type - AC, DC:Brushed DC
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (2)
Interface:PWM, Serial
Technology:Bi-CMOS
Step Resolution:-
Applications:General Purpose
Current - Output:4.5A
Voltage - Supply:10V ~ 27V
Voltage - Load:10V ~ 27V
Operating Temperature:-20°C ~ 85°C (TA)
Mounting Type:Through Hole
Package / Case:25-SIP Formed Leads
Supplier Device Package:25-HZIP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
