TB6549FG(O,EL)

TB6549FG(O,EL)

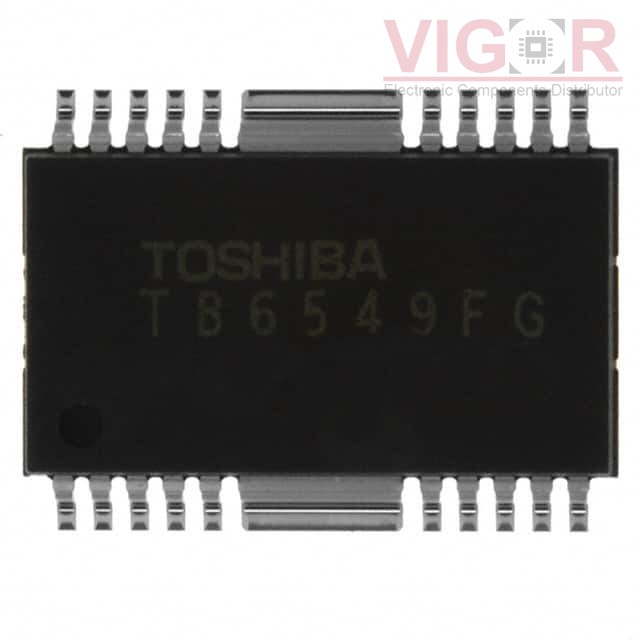

Image is for reference,
please contact us to get the real picture

Part No :

TB6549FG(O,EL)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
IC MOTOR DRIVER 10V-27V 20HSOP
Catalog
PMIC - Motor Drivers, Controllers
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
TB6549FG(O,EL) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TB6549FG(O,EL) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TB6549FG(O,EL) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Motor Type - Stepper:-
Motor Type - AC, DC:Brushed DC
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (2)
Interface:PWM, Serial
Technology:Bi-CMOS
Step Resolution:-
Applications:General Purpose
Current - Output:3.5A
Voltage - Supply:10V ~ 27V
Voltage - Load:10V ~ 27V
Operating Temperature:-20°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs
Supplier Device Package:20-HSOP
