NCV70514MW003R2G

NCV70514MW003R2G

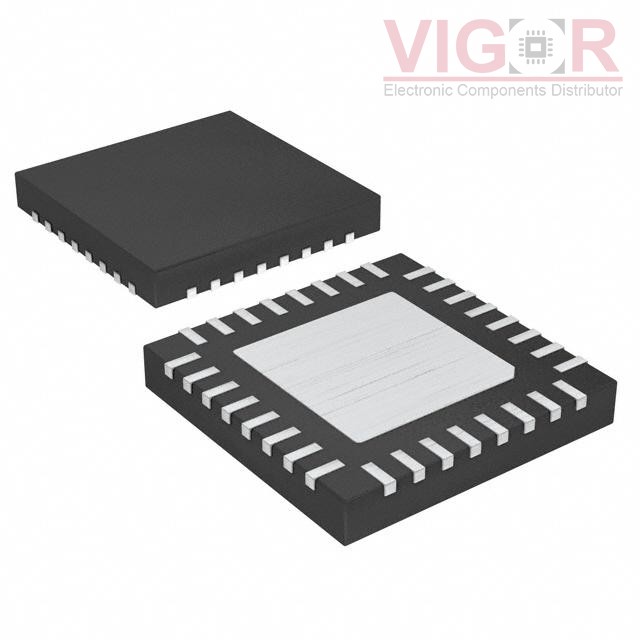

Image is for reference,
please contact us to get the real picture

Part No :

NCV70514MW003R2G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC STEPPER MOTOR DRIVER 32QFN
Catalog
PMIC - Motor Drivers, Controllers
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
NCV70514MW003R2G PDF
Availability
500 pieces
Unit Price
$0.00000

Current price of NCV70514MW003R2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCV70514MW003R2G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Motor Type - Stepper:Bipolar
Motor Type - AC, DC:-
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (4)
Interface:SPI, Step/Direction
Technology:Power MOSFET
Step Resolution:1 ~ 1/32
Applications:General Purpose
Current - Output:-
Voltage - Supply:6V ~ 29V
Voltage - Load:0V ~ 5.5V
Operating Temperature:-45°C ~ 145°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:32-VFQFN Exposed Pad
Supplier Device Package:32-QFNW (5x5)
