TPS22920LYZPR

TPS22920LYZPR

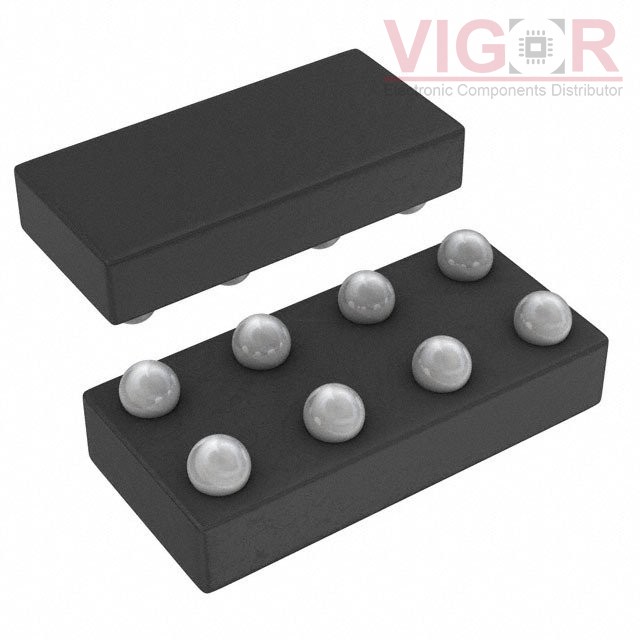

Image is for reference,
please contact us to get the real picture

Part No :

TPS22920LYZPR

Manufacturer
Texas Instruments
Description
IC PWR SWITCH N-CHAN 1:1 8DSBGA
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
TPS22920LYZPR PDF
Availability
498 pieces
Unit Price
$1.08000

Current price of TPS22920LYZPR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPS22920LYZPR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Type:General Purpose
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:0.75V ~ 3.6V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):4A
Rds On (Typ):5.3mOhm
Input Type:Non-Inverting
Features:Load Discharge, Slew Rate Controlled
Fault Protection:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:8-DSBGA, 8-WCSP (1.9x0.9)
Package / Case:8-XFBGA, DSBGA
