VN800PT

VN800PT

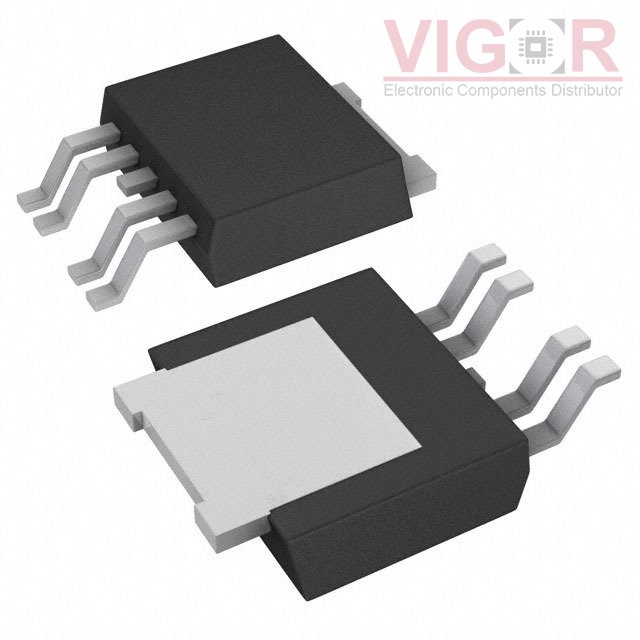

Image is for reference,
please contact us to get the real picture

Part No :

VN800PT

Manufacturer
STMicroelectronics
Description
IC PWR DRIVER N-CHANNEL 1:1 PPAK
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
VN800PT PDF
Availability
5099 pieces
Unit Price
$1.83000

Current price of VN800PT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VN800PT Specifications
Type Description
Series:VIPower™
Package:Tube
Part Status:Obsolete
Switch Type:General Purpose
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:5.5V ~ 36V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):700mA
Rds On (Typ):135mOhm (Max)
Input Type:Non-Inverting
Features:Auto Restart, Status Flag
Fault Protection:Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PPAK
Package / Case:TO-252-5, DPak (4 Leads + Tab), TO-252AD
